This 630kVA pad mounted transformer (ZGS American compact substation) is an integrated outdoor distribution equipment widely adopted for urban underground power grid. It combines high voltage switch compartment, protection fuses, hermetic oil immersed transformer and low voltage distribution panel within one compact enclosure.Available in radial feed / loop feed, dead-front and live-front configurations to meet North American and global distribution standards. Mainly applied in residential subdivisions, commercial plazas, municipal roads, parks and industrial zones. Factory pre-assembled design minimizes civil work and onsite installation workload.
American Type Substations

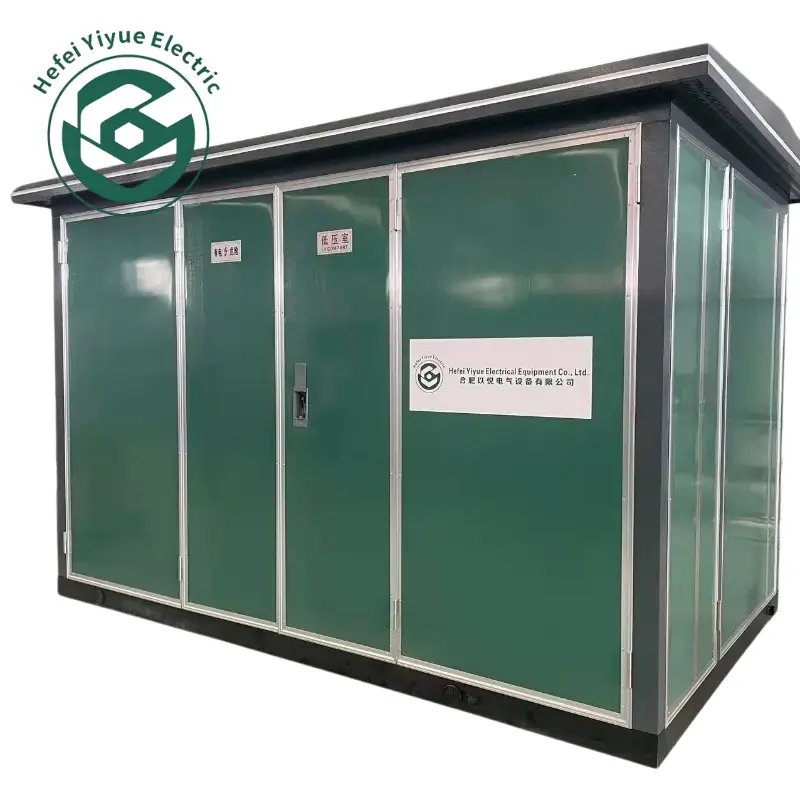

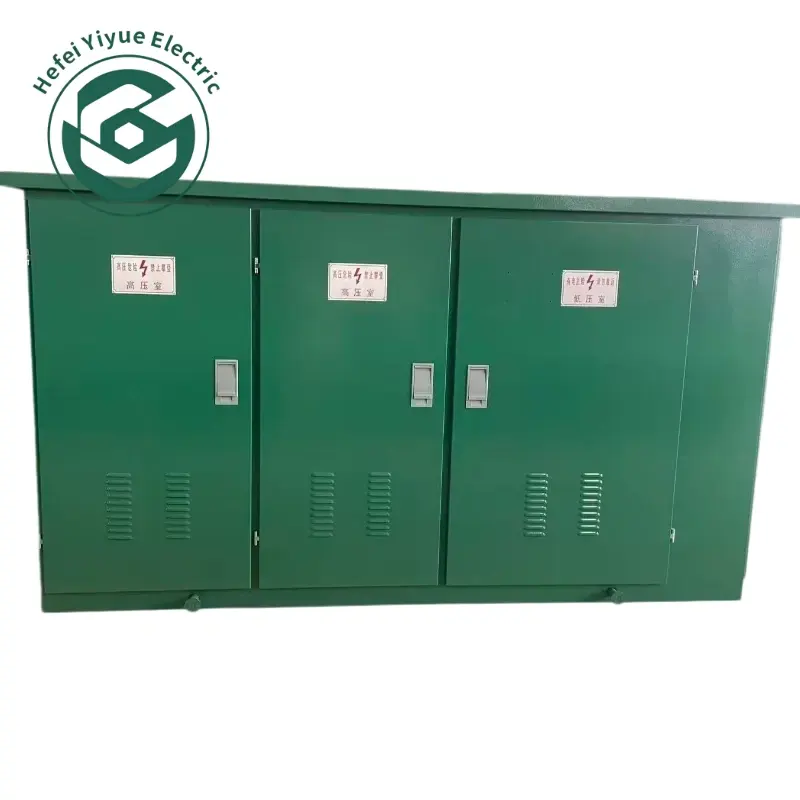

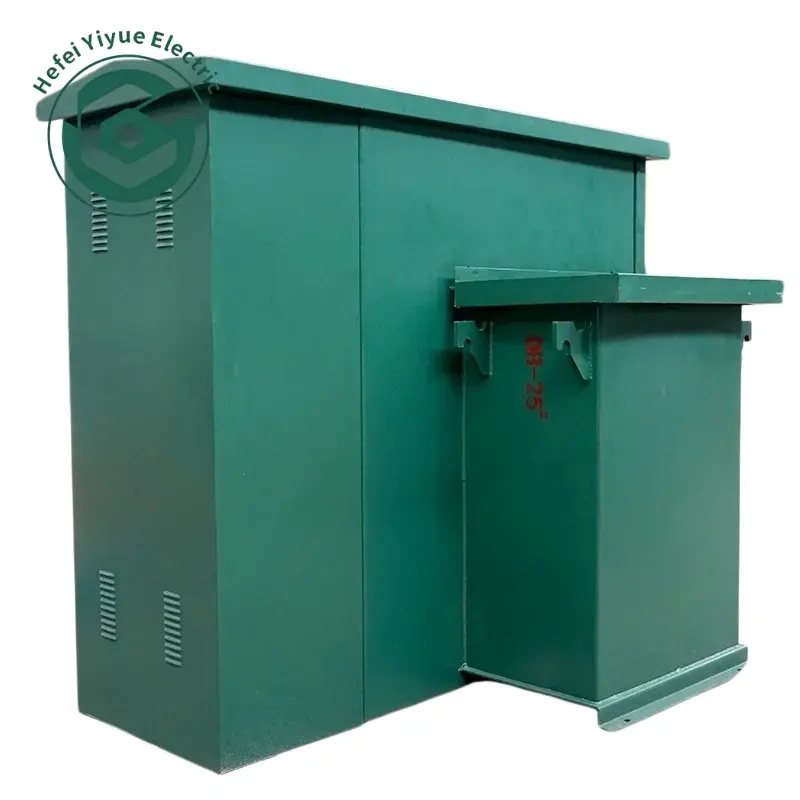

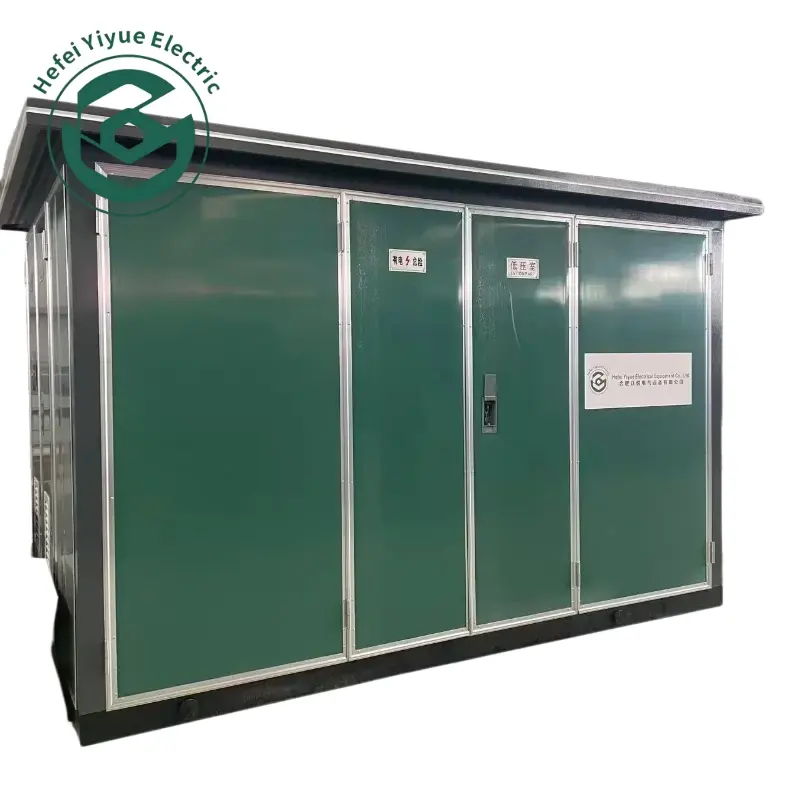

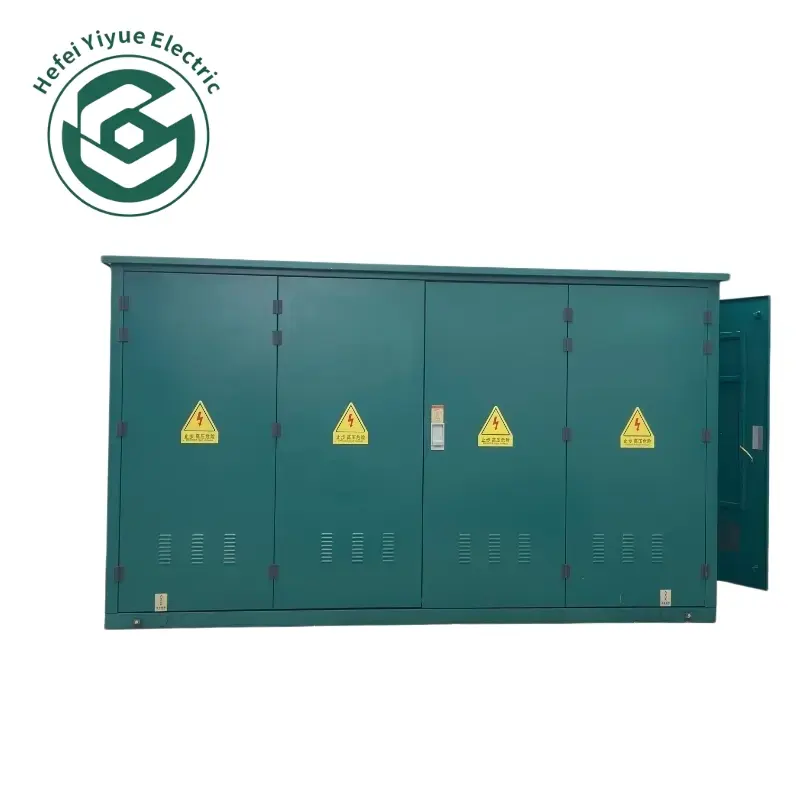

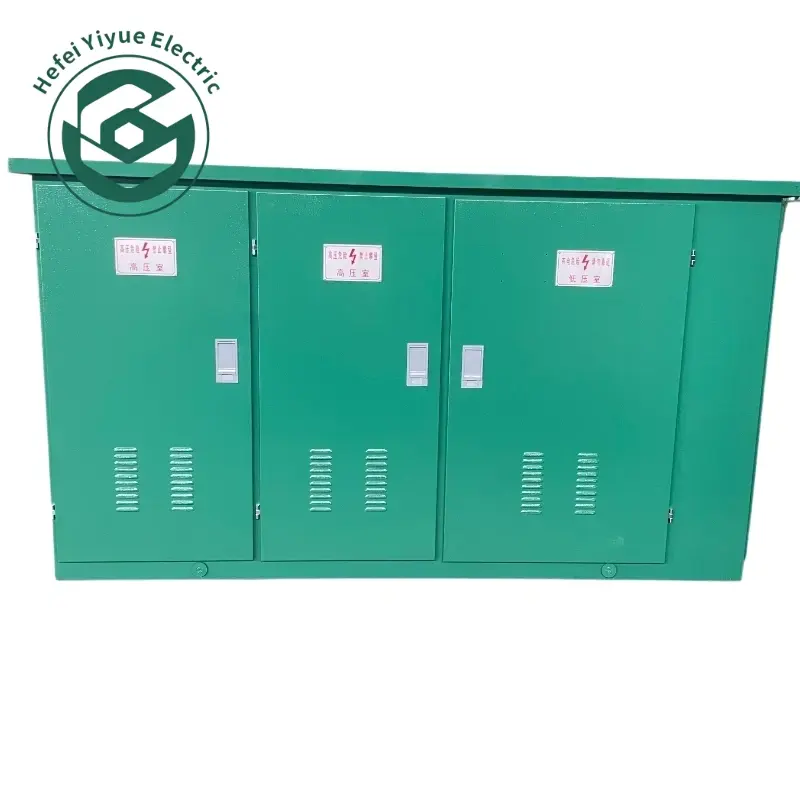

630kVA ZGS American Type Pad Mounted Compact Substation
-
Clear shipment tracking
-
Rigorous quality inspection
-
Has good after-sales service
Detailed Description
Product Feature
1.Highly integrated compact structure, only 1/3~1/5 footprint of equivalent European box substation, save construction land cost
2.Dead-front / Live-front optional, support Loop Feed & Radial Feed two wiring modes for underground distribution network
3. Hermetically sealed oil immersed transformer tank, fully insulated design, no safety clearance required
4.Dual fuse protection system: Bayonet fuse + backup current-limiting fuse for overload & short-circuit defense
5. 100% copper winding transformer, low no-load & load loss, compliant with ANSI/IEEE & IEC efficiency standards
6. Robust anti-corrosion steel enclosure, tamper-resistant lock design, IP54 outdoor weatherproof performance
Technical Specifications of 630kva American Type Substation
| Category | Item | Standard Specification | Custom Option |
|---|---|---|---|
| Power Rating | Rated Capacity | 630kVA | — |
| Phase | Three Phase | — | |
| Frequency | 50Hz | 60Hz for North America | |
| Cooling Mode | ONAN Natural Oil Cooling | — | |
| Voltage System | Primary Voltage | 10kV | 12.47kV /13.2kV /13.8kV |
| Secondary Voltage | 0.4kV | 208V / 480V | |
| Tap Changer | ±2×2.5% Off-circuit Tap Changer | Custom tap range | |
| Vector Group | Dyn11 | — | |
| Transformer Body | Winding Material | 100% Copper | Aluminum winding optional |
| Core | High grain-oriented silicon steel | Low loss silicon steel upgrade | |
| Tank Type | Hermetically sealed fully welded tank | — | |
| Insulating Oil | Mineral oil | FR3 biodegradable environmental oil | |
| HV Compartment | Wiring Type | Radial Feed | Loop Feed (Ring Main) |
| Structure Style | Live-front | Dead-front fully insulated | |
| Protection System | Bayonet fuse | Add backup current limiting fuse | |
| Load Break Switch | Oil immersed load switch | — | |
| LV Compartment | LV Rated Current | 909A | Custom outgoing circuits |
| Protection | MCB / MCCB | Reactive power compensation cabinet | |
| Enclosure & Environment | Enclosure Material | Steel plate, anti-corrosion coating | Custom RAL color |
| Protection Class | IP54 | — | |
| Working Altitude | ≤1000m without derating | High altitude version ≤3000m | |
| Ambient Temperature | -20℃ ~ +45℃ | Tropical / low temperature version | |
| Noise Level @1m | ≤58dB | Ultra low noise design | |
| Safety & Accessories | Monitoring Parts | Oil level gauge, pressure relief valve, thermometer | Temperature remote sensor |
| Lock | Anti-theft tamper resistant lock | Custom lock mechanism | |
| Dimension & Weight | Overall Size(L×W×H) | 2300×1500×1850 mm | Optimized compact size |
| Net Weight | ≈3200 kg | — | |
| Compliance Standard | Standards | IEC60076, CE, ISO9001 | ANSI, IEEE C57.12, UL optional |
| Service Life | Design Lifespan | ≥25 Years | — |
Why Choose Yiyue
1.Professional manufacturer focusing on American type pad mounted transformers, rich export experience for North America & global power projects
2.Support customized design: voltage, loop/radial feed, dead-front/live-front, LV outgoing scheme, enclosure color & OEM logo
3.Strict full testing before delivery: ratio test, insulation test, partial discharge, load test; complete test reports for tender bidding
4.Comply with ANSI/IEEE, IEC, CE standards; supporting documents available to meet local grid access requirements
Packaging And Transportation
Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.
Customized Packaging Solutions
- Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
- Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
- Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit
All packages are marked with clear shipping marks and handling warnings for standard operation.
Production Lead Time
- Standard in-stock items: 5–7 working days upon payment confirmation
- Customized non-standard products: 7–15 working days after design confirmation & deposit
- Large orders with special requirements: Lead time subject to separate confirmation
Shipping Method Region Estimated Transit Time Remarks Sea Freight Southeast Asia 15–25 working days Port to port, FCL & LCL available Middle East 15–25 working days Port to port, FCL & LCL available North America 20–30 working days Port to port, FCL & LCL available Europe 25–35 working days Port to port, FCL & LCL available Oceania 20–30 working days Port to port, FCL & LCL available Africa 30–45 working days Port to port, FCL & LCL available Air Freight Southeast Asia 5–7 working days Airport to airport, for urgent orders Middle East 5–7 working days Airport to airport, for urgent orders North America 10–15 working days Airport to airport, for urgent orders Europe 7–15 working days Airport to airport, for urgent orders Africa 4–6 working days Airport to airport, for urgent orders Air Freight (Express) Worldwide Major Countries 3–7 working days Door-to-door, suitable for small spare parts
