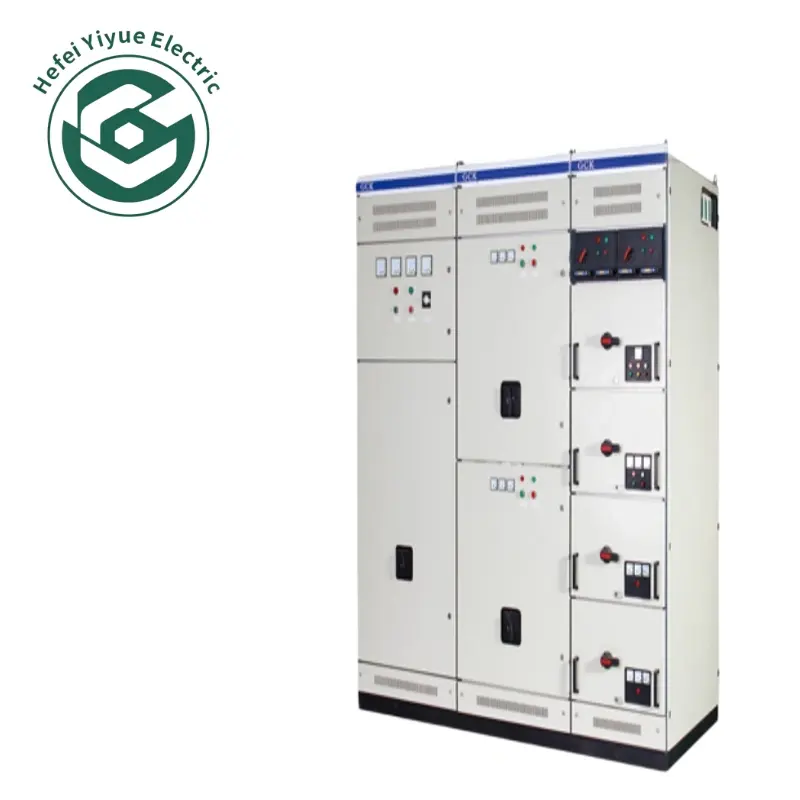

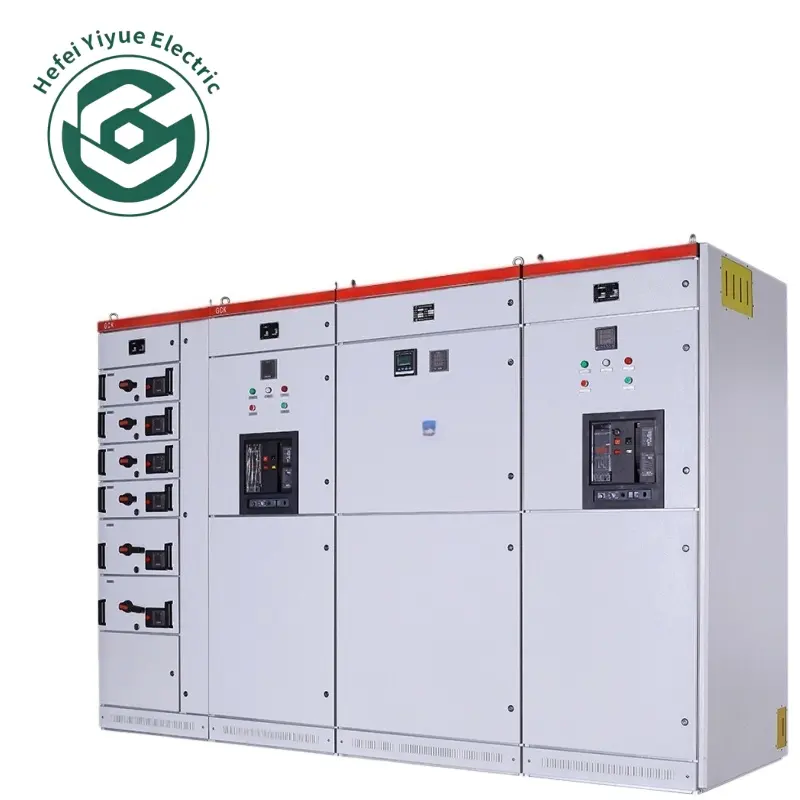

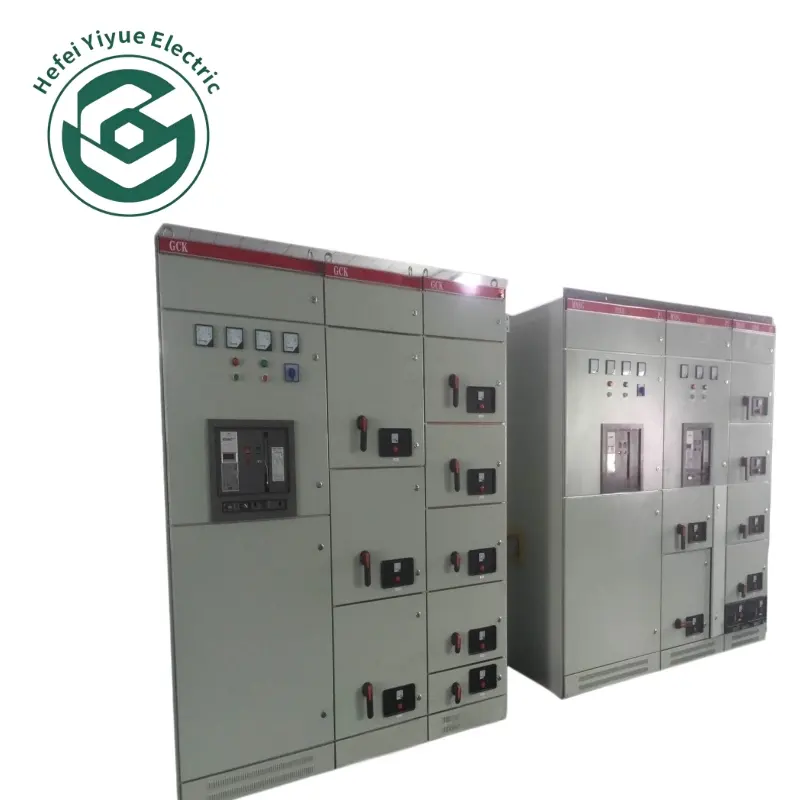

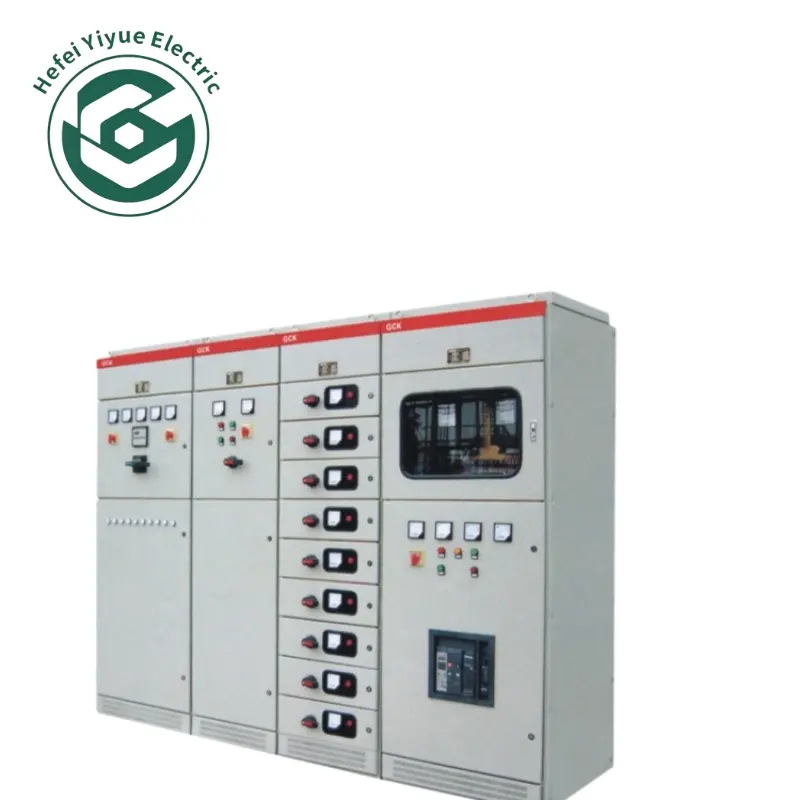

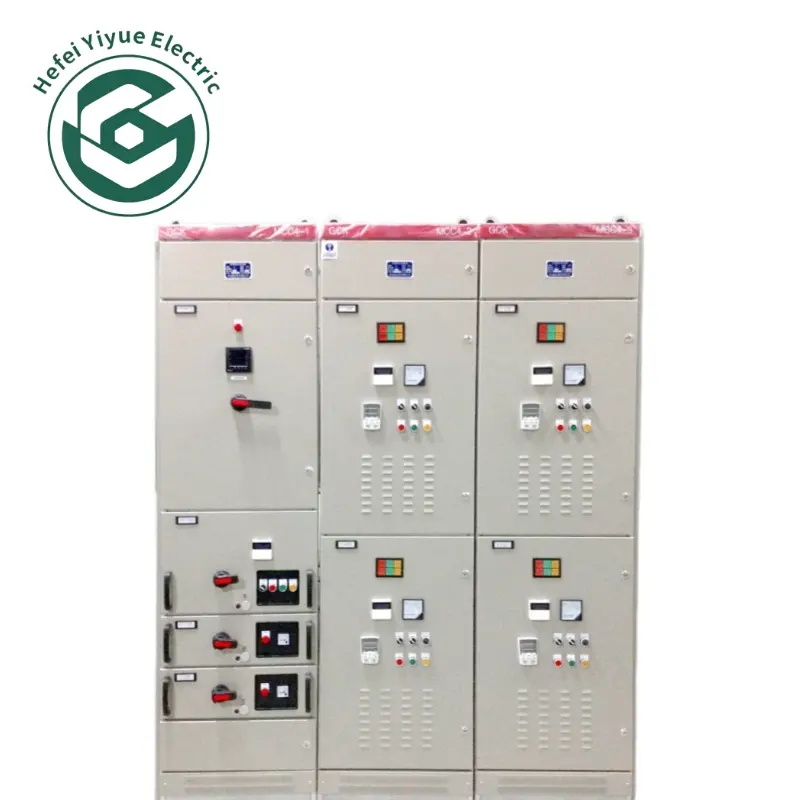

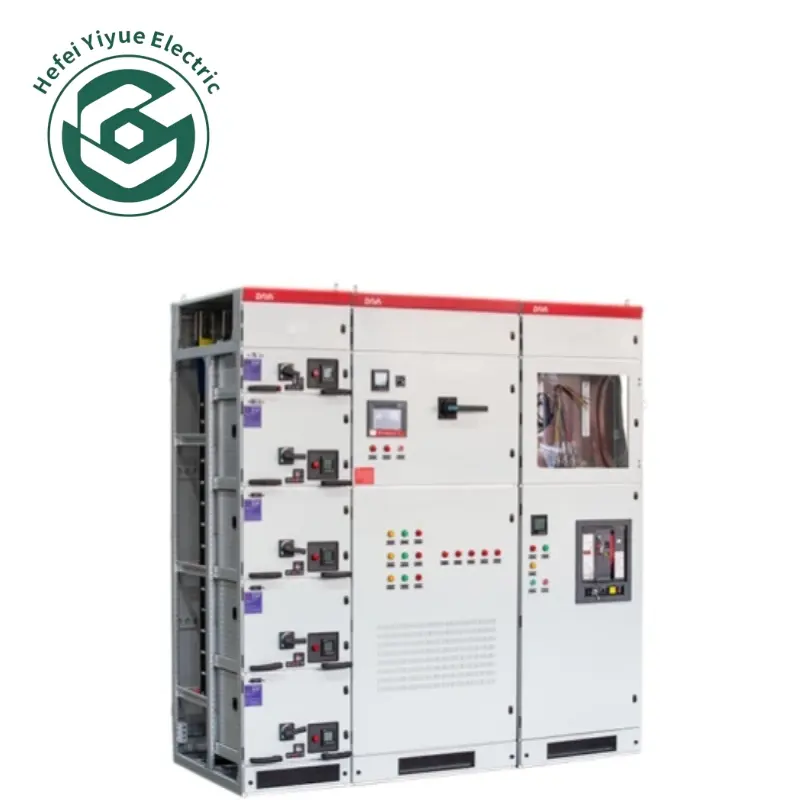

    High Safety GCK Indoor Low Voltage Draw-out Switchgear

    Support OEM & ODM Customization

    High Safety Modular GCK Indoor Low Voltage Draw-out Switchgear is indoor drawer-type low voltage distribution equipment. It solves the trouble of difficult maintenance of traditional fixed cabinets, featuring detachable drawer unit, independent compartment isolation, complete safety interlock and flexible circuit collocation.



    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    Product Feature

    1. Draw-out drawer unit allows quick disassembly and maintenance without power cut.
    2. Modular layered design supports flexible combination of multiple power distribution circuits.
    3. Independent isolation compartments effectively prevent short-circuit safety accidents.
    4. High-strength galvanized cabinet with anti-corrosion performance for long indoor service life.
    5. Full protection against overload, short-circuit, leakage and under-voltage faults.
    6. Interlock device avoids misoperation during drawer pulling in and out.

    Technical Specifications of High Safety GCK Indoor Low Voltage Draw-out Switchgear

    ItemSpecification
    NameHigh Safety Modular GCK Indoor Low Voltage Draw-out Switchgear
    Rated Voltage400/690V
    Max Bus Current3150A
    StructureDraw-out drawer type, modular assembly
    Protection GradeIP30
    FeatureMechanical interlock, triple separated chambers
    ApplicationIndoor factory, commercial building power distribution

    Why Choose Yiyue

    All electrical products pass strict factory tests in line with IEC, CE and ANSI standards, with outstanding anti-corrosion and sealing performance for outdoor application.

    Hefei Yiyue Electrical Equipment Trading Co., Ltd focuses deeply on the core sectors of the electrical equipment industry.

    Based in Hefei, the company serves the domestic market while expanding its reach nationwide and globally.

    Driven by the mission to “connect the world’s advanced electrical technologies and build an intelligent, efficient energy ecosystem”.

    It strives to become a top-tier domestic and internationally renowned provider of electrical equipment trading and comprehensive services.

    The company owns an independent industrial park covering 8,000 square meters.

    Main products: generator sets, transformers, box-type substations, high and low voltage switchgear, power distribution cabinets, gas-insulated ring main units (RMUs), vacuum circuit breakers, power system accessories, power cables.

    IP30 indoor protection grade, suitable for factory and commercial power distribution rooms. Comply with IEC international standards, stable performance under heavy load.

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
