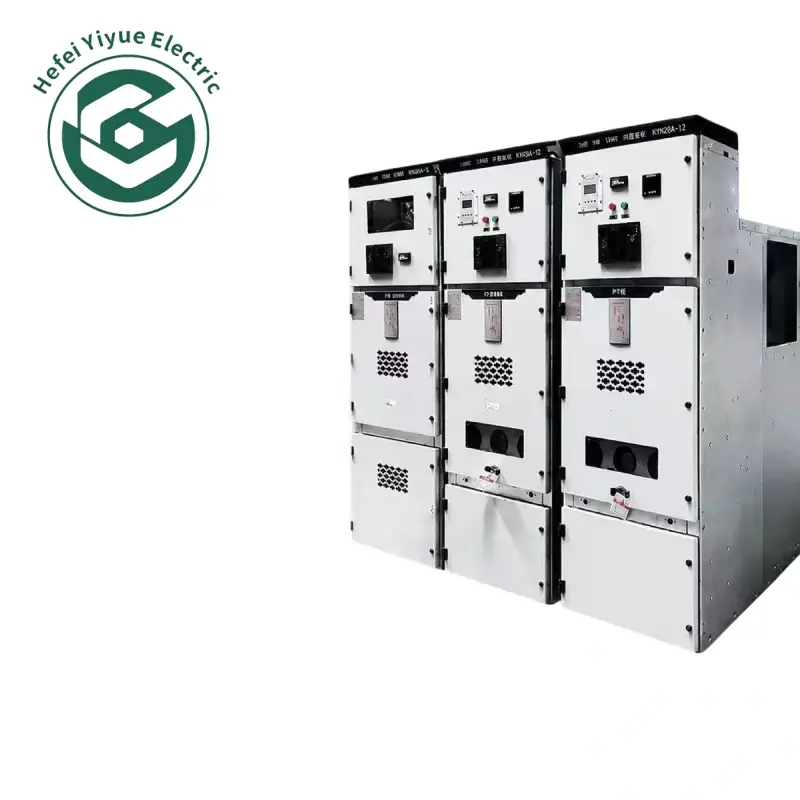

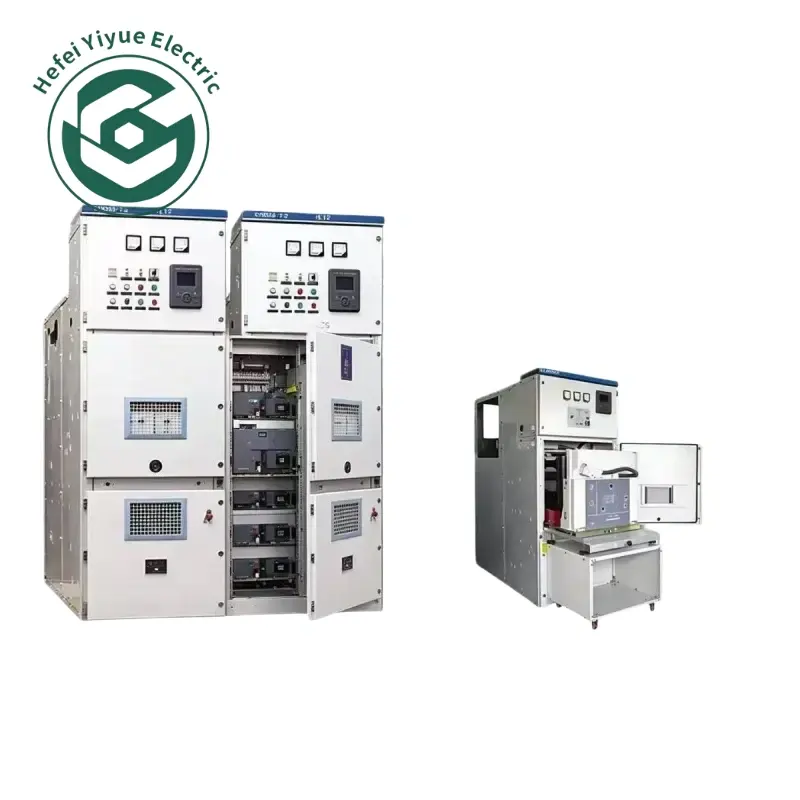

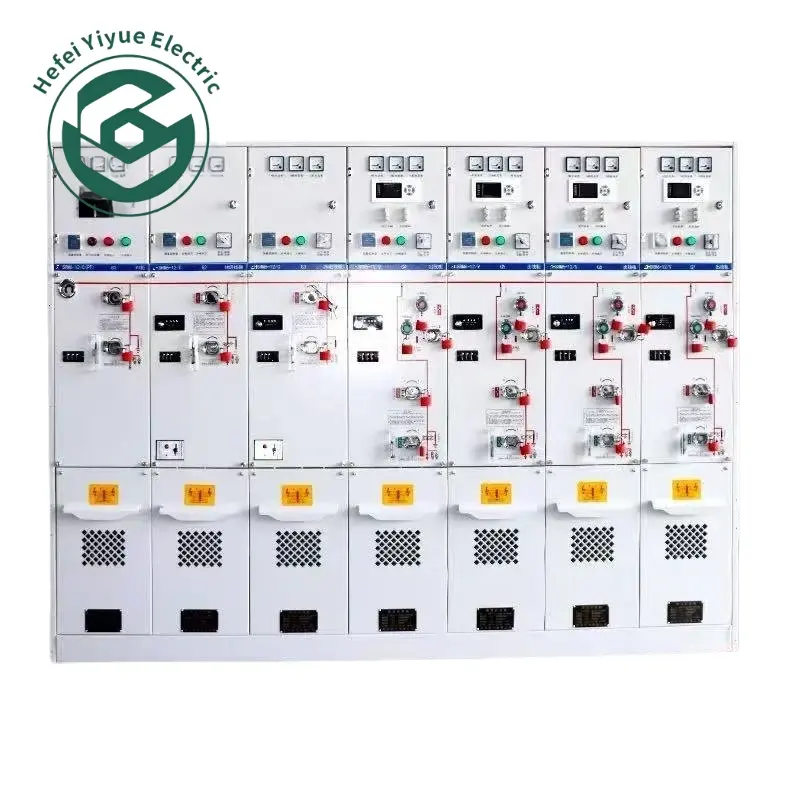

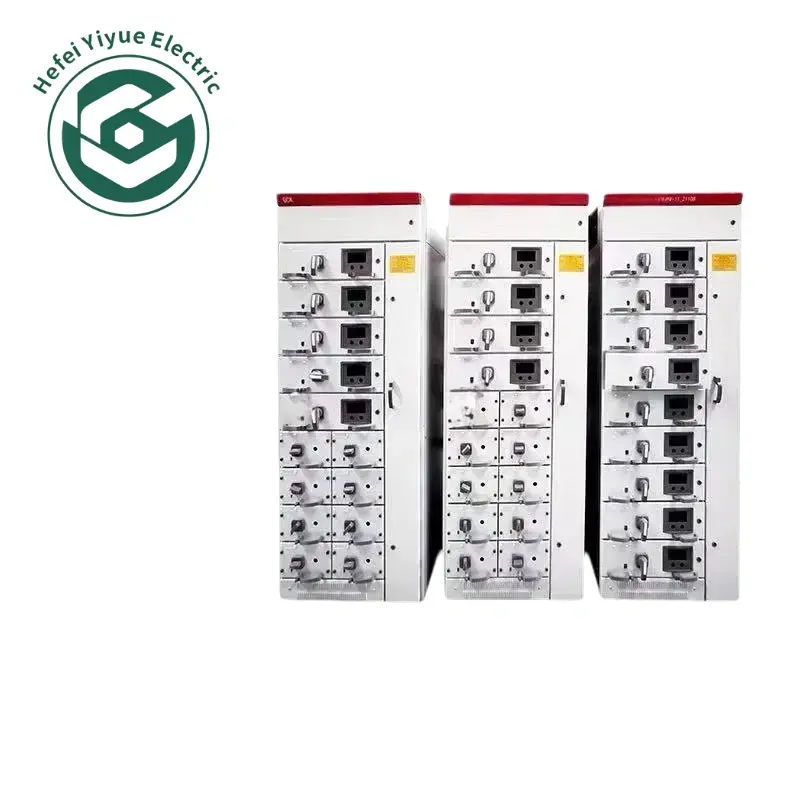

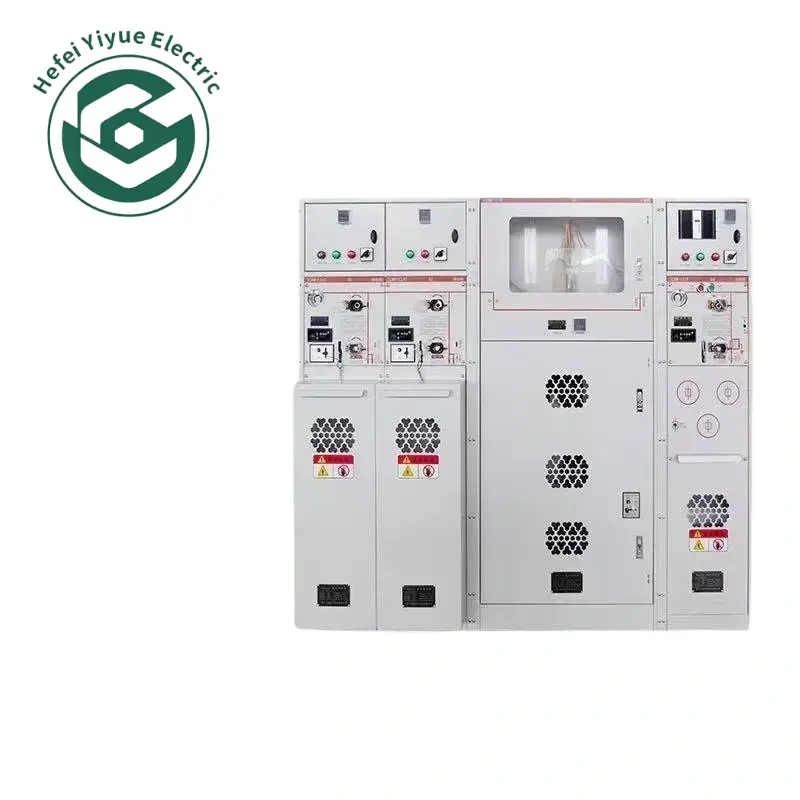

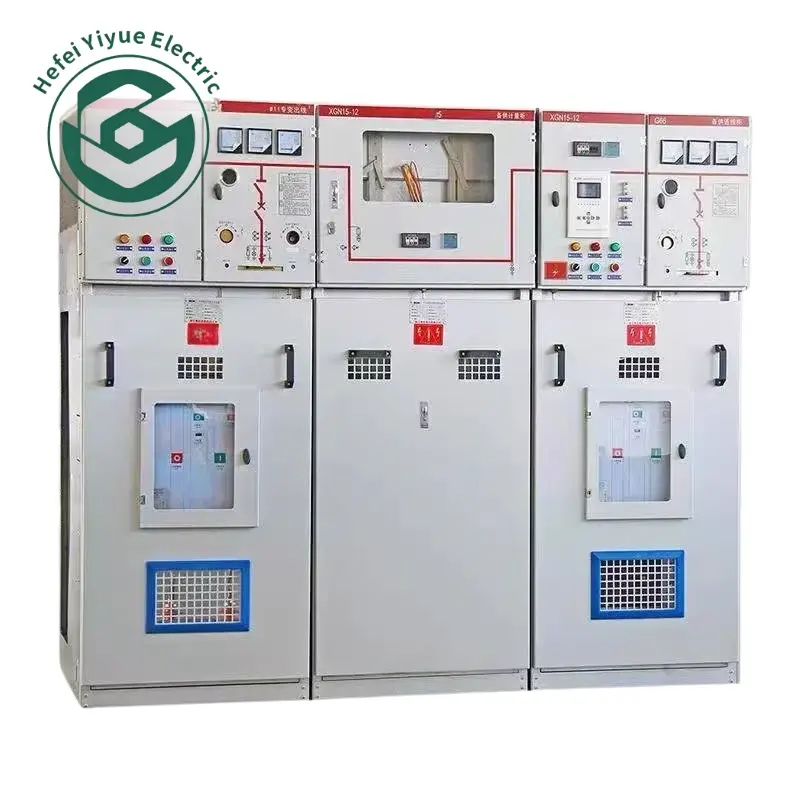

High Voltage SF6 Gas Insulated Compact Switchgear Cabinet
Full range of products can be customized
SF6 gas insulated compact switchgear is high-voltage distribution equipment using SF6 gas for insulation and arc extinction. It adopts a fully sealed modular structure with high protection grade and a small footprint. Equipped with complete interlock protection, it is highly resistant to moisture, dust and corrosion, adapting to urban grids, industrial parks and other limited or harsh environments. It features long-term maintenance-free operation, stable performance, long service life, flexible wiring and intelligent monitoring, ideal for modern compact power distribution systems.
1.Adopts SF6 gas insulation technology, greatly reducing overall volume and achieving ultra-compact footprint for space-limited substations.
2.Fully enclosed metal structure provides excellent protection against dust, moisture, corrosion and external environmental interference.
3.Highly reliable SF6 insulating medium delivers superior dielectric performance, stable insulation and long service life.
4.Integrated modular design for easy installation, expansion and routine maintenance, saving construction and engineering time.
5.Complete interlocking and safety protection mechanisms prevent misoperation, ensuring high safety for high-voltage power distribution systems.
6.Low noise, low maintenance and stable long-term operation, suitable for urban power grids, data centers and industrial high-voltage power stations.
Specifications of High Voltage Switchgear
Parameter name
Parameter value/range
Rated Voltage
12kV / 24kV / 36kV
Rated Current
630A / 1250A / 2000A
Rated Short-circuit Breaking Current
20kA / 25kA / 31.5kA (3s)
Insulation & Arc-extinguishing Medium
SF6 Sulfur Hexafluoride Gas
Enclosure Protection Grade
IP67 (Main Enclosure)
Why choose YiYue
We are the original manufacturer of SF6 gas insulated compact switchgear with complete certifications and strict inspections. Our products feature fine craftsmanship, reliable performance and perfect safety interlocks, adapting to harsh working conditions, with custom solutions available. We offer formal warranty, technical support and prompt after-sales service. Our products are stable, durable and cost-effective with fast delivery, ensuring long-term safe power distribution operation.
Packaging And Transportation
Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.
