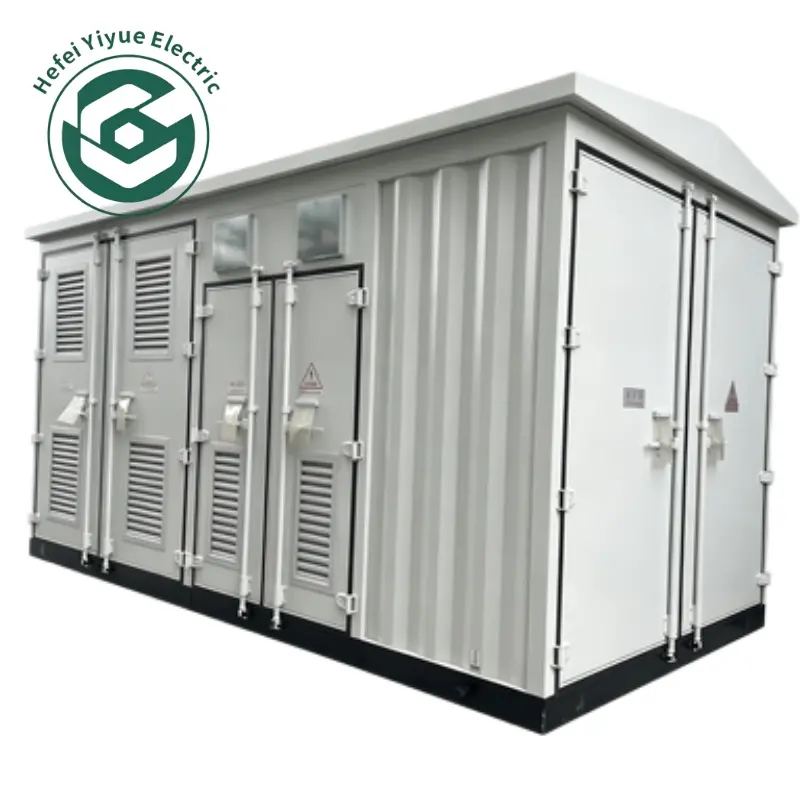

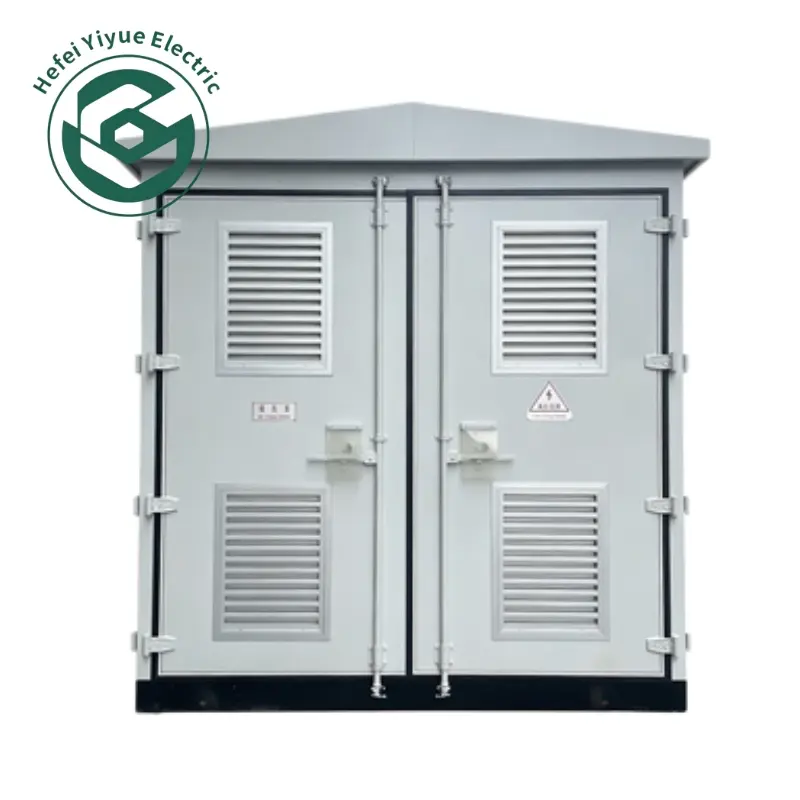

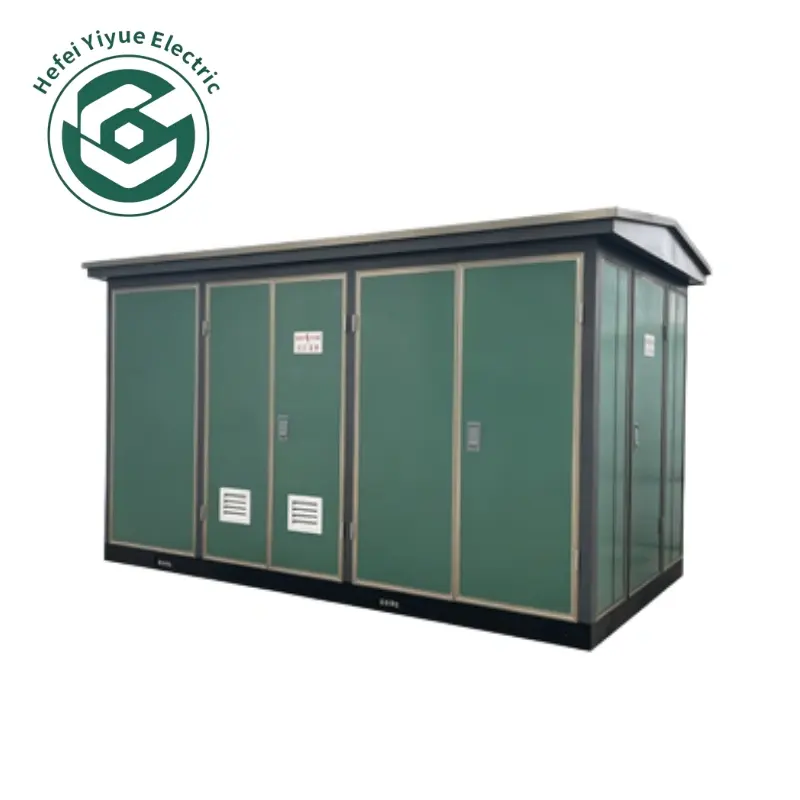

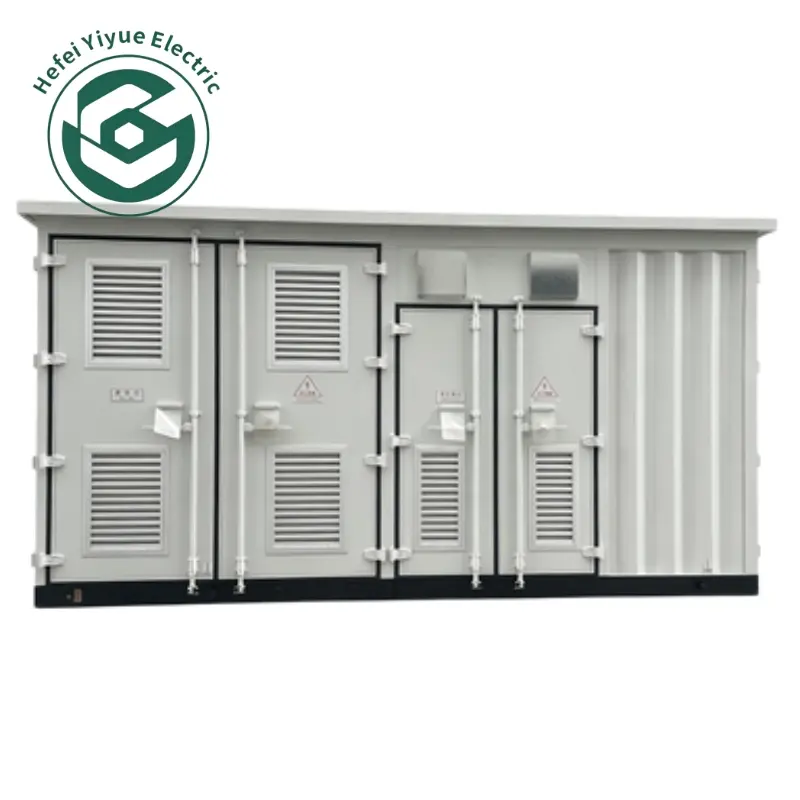

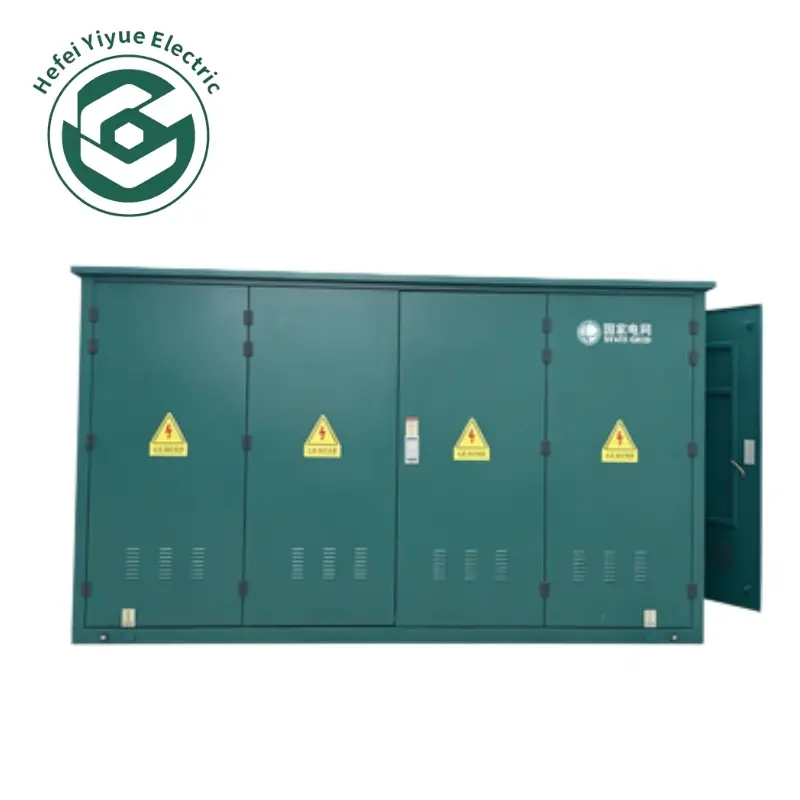

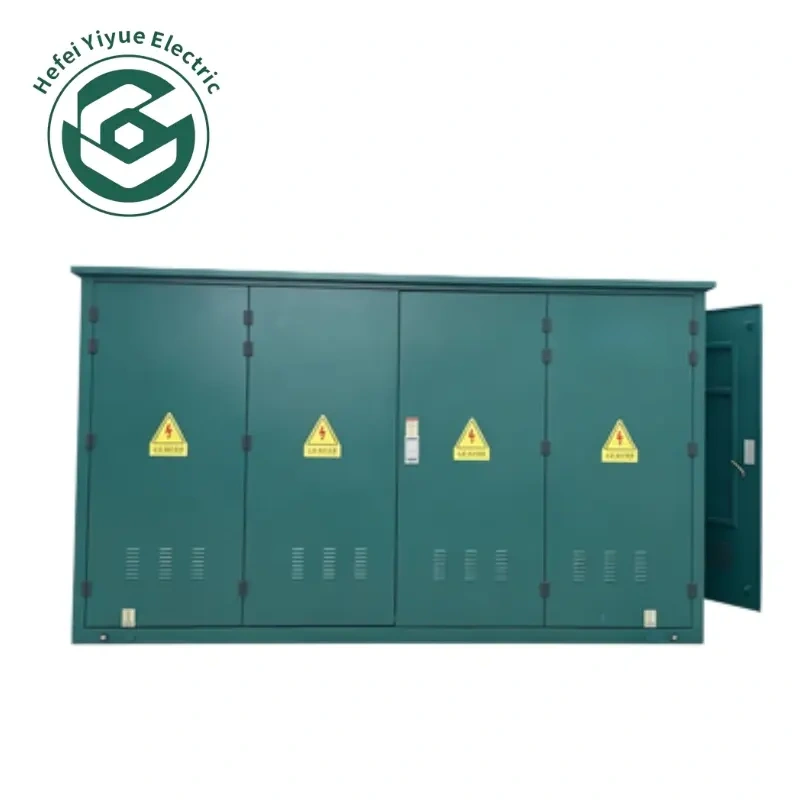

    Weatherproof 100kVA Prefabricated European Compact Substation

    100kVA European prefabricated substation (ZBW box substation) is integrated outdoor power distribution equipment widely applied in urban power network. It adopts independent three-compartment layout: high voltage room, transformer room and low voltage room. Equipped with Ring Main Unit (RMU), distribution transformer and LV distribution panel as a complete set.

    Support oil immersed transformer or cast resin dry type transformer optional. Compact structure, reliable safety interlock, convenient installation and minimal maintenance. Ideal for residential districts, commercial plazas, municipal roads, construction sites and industrial parks.

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    Product Feature

    1.Three-compartment independent layout: HV RMU, transformer, LV distribution cabinet

    2.Integrated complete set, factory pre-assembled, shorten site construction period

    3.Galvanized steel enclosure, anti-corrosion, rainproof, IP33/IP44 protection grade

    4.Optional oil immersed / dry type transformer to satisfy different safety requirements

    5.Equipped with Ring Main Unit for ring network power supply, high power reliability Independent ventilation & heat dissipation channel, avoid mutual thermal interference

    Technical Specifications of 100kva European Substation

    CategoryItemStandard SpecificationOptional Customization
    Basic Power ParametersRated Capacity100kVA—
    PhaseThree Phase—
    Frequency50Hz60Hz
    Cooling MethodONAN (Oil Immersed)AN (Dry Type Transformer)
    Voltage ParametersPrimary Voltage10kV11kV / 12kV / 24kV
    Secondary Voltage0.4kV415V
    Tap Changer±2×2.5% Off-circuit Tap ChangerOn-load tap changer
    Vector GroupDyn11Dyn0
    Cabinet LayoutStructure Layout3 independent compartmentsHV Room + Transformer Room + LV RoomCombined compact layout
    HV EquipmentRing Main Unit (RMU)Load break switch cabinet
    Transformer OptionOil immersed distribution transformerCast resin dry type transformer
    LV PanelIncoming + outgoing MCCB cabinetAdd reactive power compensation cabinet
    Transformer DetailsWinding Material100% CopperAluminum winding
    Core MaterialGrain-oriented silicon steel sheetLow loss high grade core
    TankFully sealed corrugated tank (oil type)—
    Enclosure & EnvironmentCabinet MaterialHot-dip galvanized steel plateAluminum alloy plate
    Surface TreatmentPolyester electrostatic sprayingCustom RAL color
    Protection ClassIP33IP44 upgrade
    Ambient Temperature-20℃ ~ +45℃Tropical / Low temperature version
    Working Altitude≤1000m (No power derating)High altitude ≤3000m version
    Noise Level @1m≤55dBSuper low noise design
    Safety ConfigurationMechanical InterlockDoor opening interlock, prevent misoperationElectrical interlock upgrade
    Ventilation SystemNatural ventilation louverForced cooling fan
    LightingIndoor cabinet lightingHeating dehumidifier device
    Dimension & WeightOverall Size(L×W×H)2600×1600×2200 mmCustom compact dimensions
    Net WeightApprox. 2200 kgDepends on internal configuration
    Execution StandardCompliance StandardIEC62271, IEC60076, CE, ISO9001Custom test report requirements
    Service LifeDesign Service Life≥25 Years—
