SCB10 400kVA Dry Type Transformer 12kV/0.4kV Cast Resin Insulated Transformer for Industrial Use
A professional electrical engineering team offers a comprehensive and customizable one-stop service covering all categories.

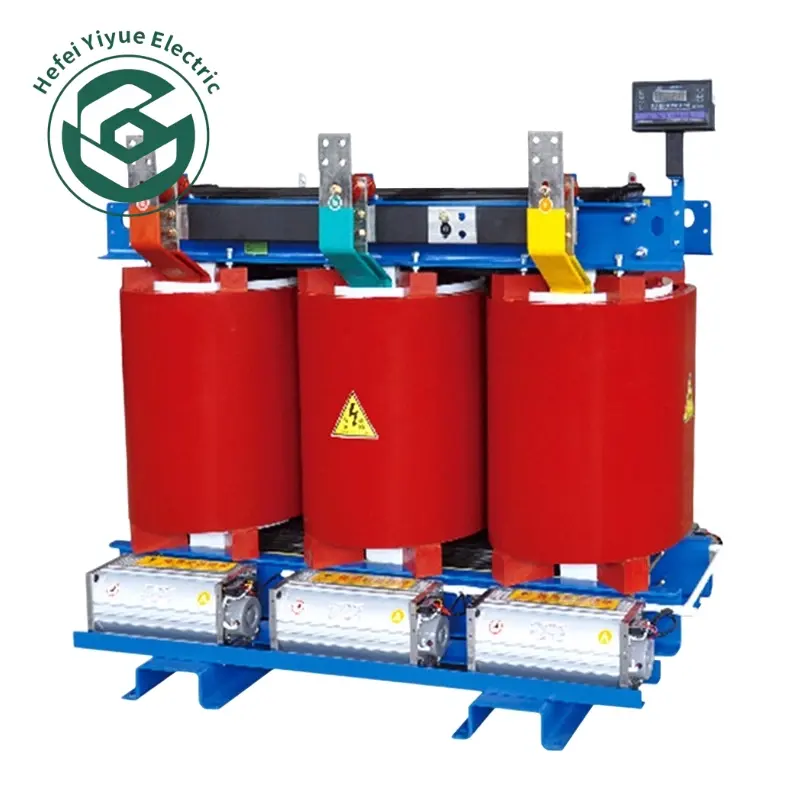

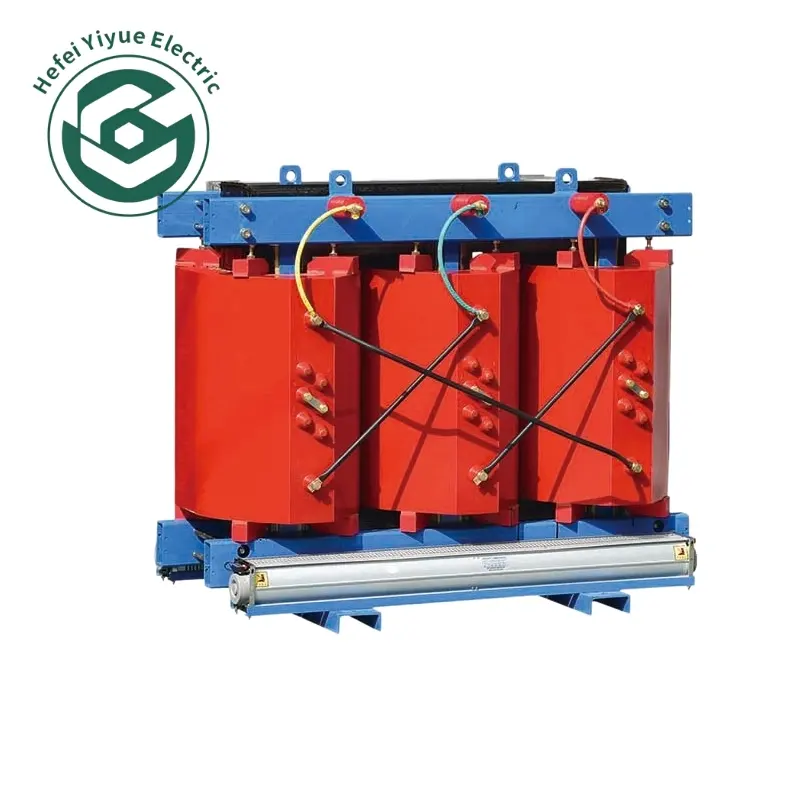

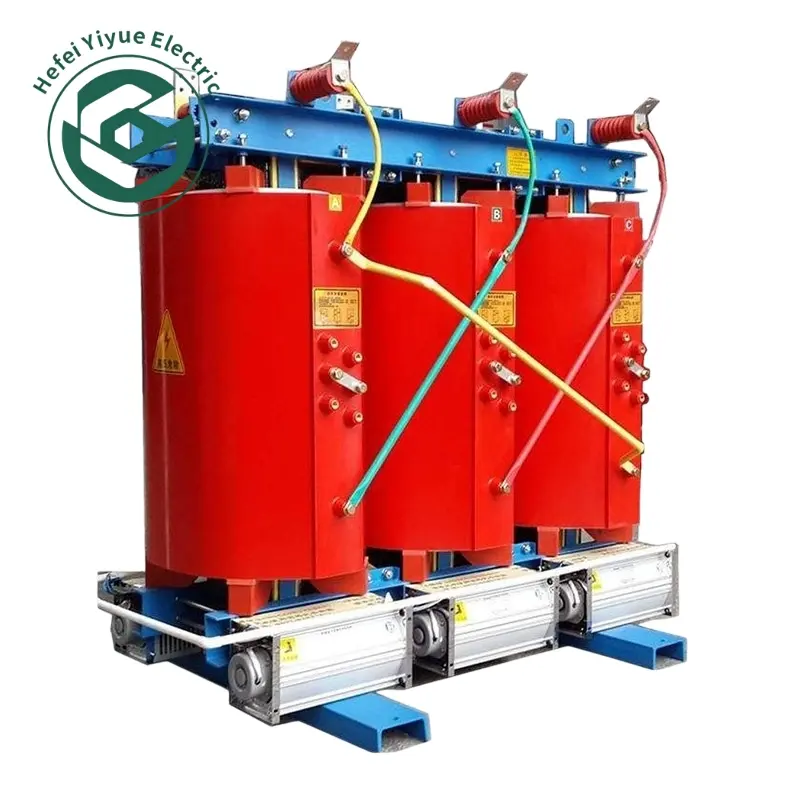

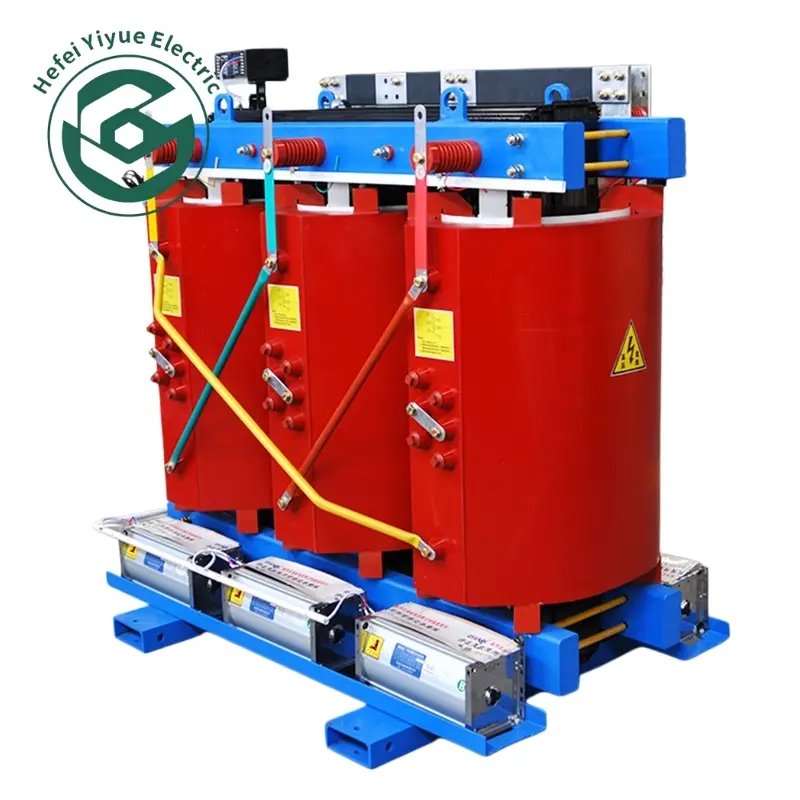

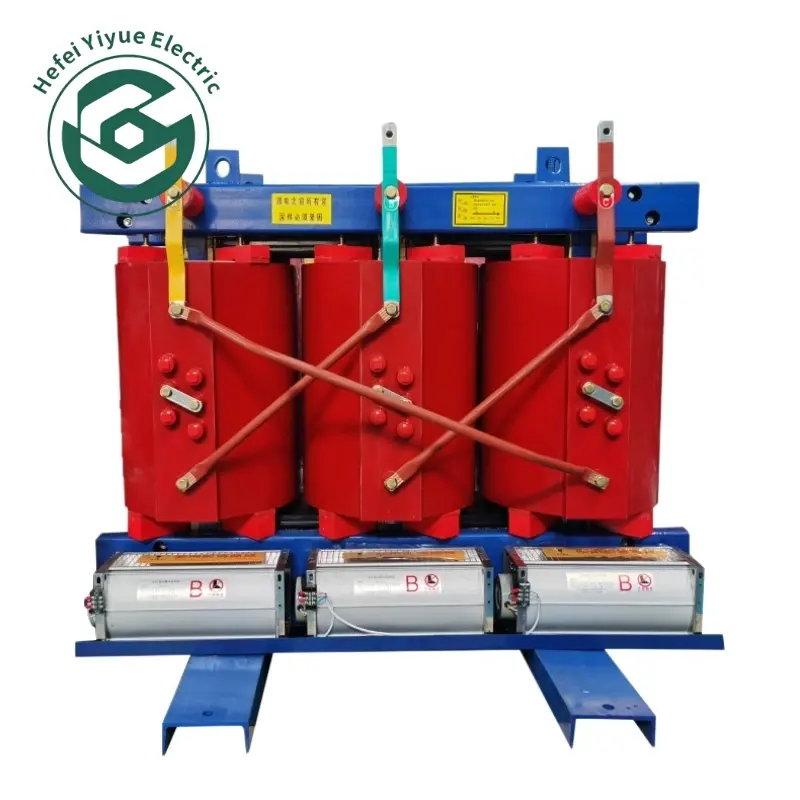

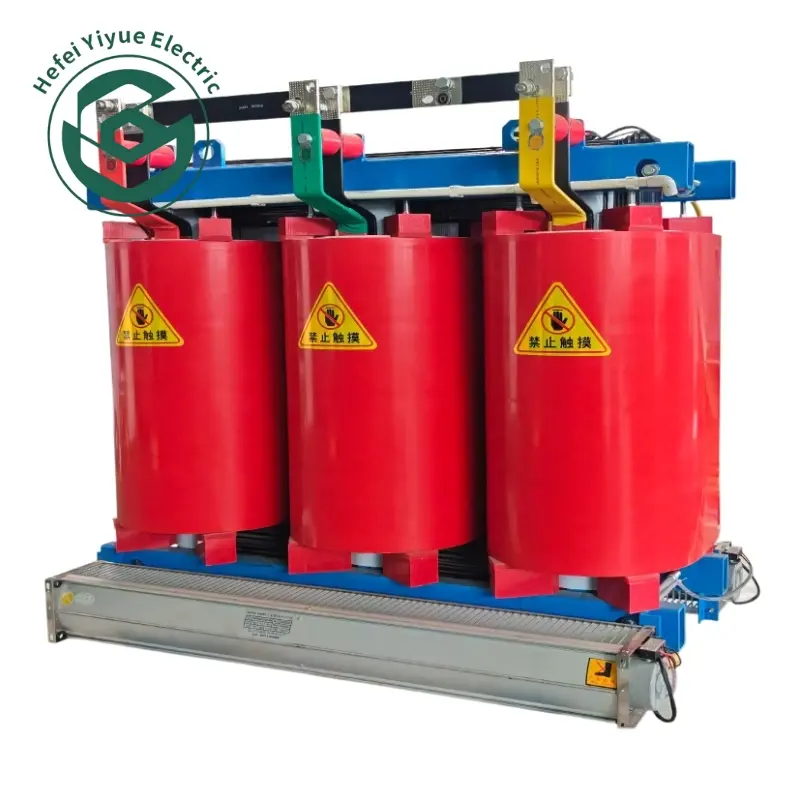

The 400kVA SCB10 cast resin dry type transformer is an indoor medium-voltage power distribution transformer widely adopted in 10kV power systems. The high-voltage and low-voltage windings are integrally encapsulated with epoxy resin through advanced vacuum casting technology, featuring solid insulation structure without any combustible insulating oil.
This SCB10 series transformer adopts high-quality cold-rolled grain-oriented silicon steel sheet as iron core material, effectively reducing no-load loss and meeting standard energy efficiency requirements. With Class F insulation, the equipment operates stably under normal indoor conditions. It is equipped with built-in temperature sensors and supporting temperature control device to monitor winding temperature in real time and realize over-temperature alarm and trip protection.
High and low voltage windings are fully cast with epoxy resin. The transformer features flame retardant, self-extinguishing and non-combustible performance. No flammable insulating oil, eliminating hidden dangers of oil leakage, explosion and fire. It can be installed in shopping malls, hospitals, underground spaces and other public buildings with strict fire protection requirements.
2.Excellent Energy Efficiency
Available in SCB10 and high-efficiency SCB13 models. Adopting high-quality cold rolled silicon steel sheet, effectively reducing no-load loss and operation cost. SCB13 meets higher energy efficiency standards, ideal for long-term continuous operation projects.
3.Stable Insulation & Low Partial Discharge
Advanced vacuum casting technology ensures uniform epoxy encapsulation. Low partial discharge value, strong resistance to humidity and pollution, suitable for indoor environments with relatively high humidity.
4.Low Noise Operation
Optimized iron core structure and damping assembly design effectively reduce vibration and noise during operation, meeting noise requirements for residential and commercial districts.
5.Flexible Cooling Mode
Standard AN natural air cooling. Optional AF forced air cooling to improve overload capacity, meeting temporary peak load demand.
Technical Specifications of400kva Dry Type Transformer
Item
Specification
Model
SCB10
Rated Capacity
400kVA
Rated Voltage Ratio
HV：10kV / 12kV；LV：0.4kV(Other voltage ratios support customization)
Connection Group
Dyn11 / Yyn0 Optional
Rated Frequency
50Hz
Insulation Class
F Class
Temperature Rise Limit
≤100K
Cooling Method
AN / AF (Natural Air / Forced Air Cooling)
Voltage Regulation Range
±2×2.5%
Noise Level
≤56dB
Protection Enclosure
IP20 / IP23 Optional
Flame Retardant Performance
Self-extinguishing, non-combustible
Environment Adaptation
Indoor installation
Ambient Temperature
-20℃ ~ +40℃
Altitude
≤1000m (Above 1000m support special design)
Standard Compliance
GB/T 1094, IEC 60076
Feature
Low partial discharge, low loss, energy saving, maintenance-free
Why Choose Yiyue
1.Direct Factory Competitive Price
Factory direct supply without middle traders. We focus on balanced performance and reasonable cost to help customers enhance competitiveness in power engineering bidding.
2.Long-term Aftermarket Service
Continuous spare parts supply, fast response for technical problems. We maintain stable cooperation with overseas distributors, contractors and system integrators.
3.Professional Dry Type Transformer Manufacturer
We specialize in medium voltage distribution transformers for many years. Strict quality control implemented throughout production, all units undergo complete routine tests before delivery. Stable quality for global construction and EPC projects.
4.Rich Customization Service
Support OEM & ODM. Voltage combination, accessories, temperature control system, enclosure and technical parameters can be adjusted to match your project design and budget.
