    HomeProducts50kW Silent Water Cooled Diesel Generator Set
    • 50kW Silent Water Cooled Diesel Generator Set
    • 50kW Silent Water Cooled Diesel Generator Set
    Diesel Generator Set

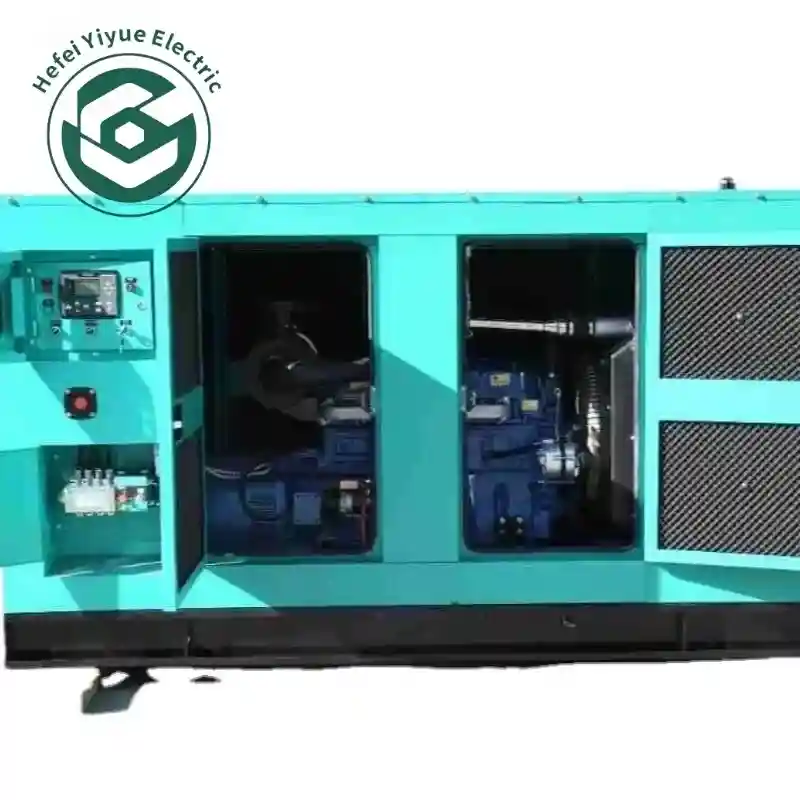

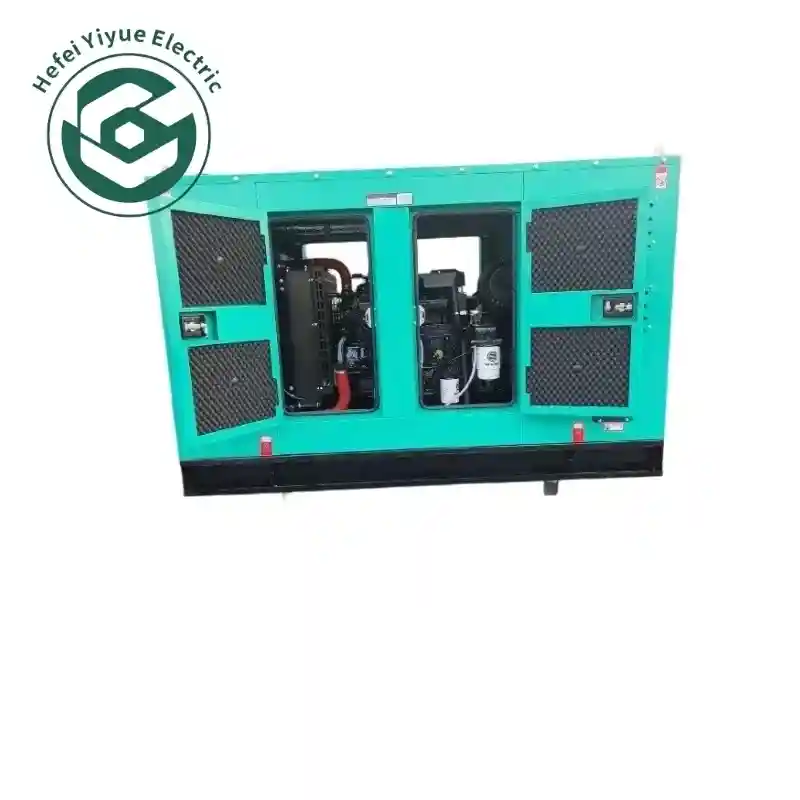

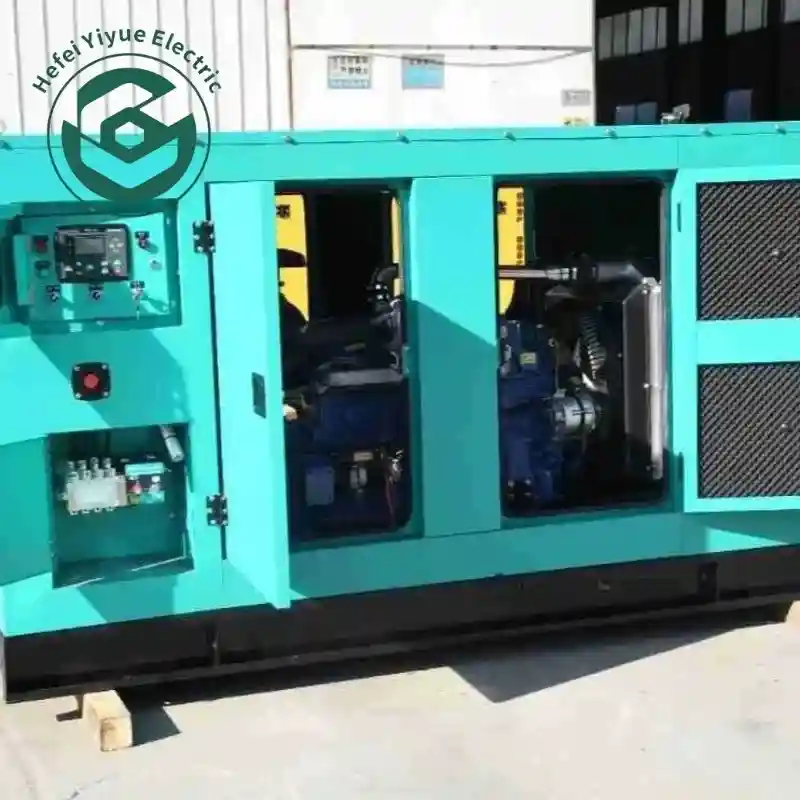

    50kW Silent Water Cooled Diesel Generator Set

    Our 50kW / 62.5kVA diesel generator set is a reliable prime & standby power solution built to ISO8528 and CE standards. Available in open type and silent type, this genset can be equipped with Weichai, Yuchai, Cummins or customized brand diesel engines, matched with brushless pure copper alternator. It supports 50Hz / 60Hz, single phase & three phase voltage options, delivering stable continuous power for commercial backup, construction sites, remote areas, hospitals, shopping malls and industrial workshops. With optional ATS automatic transfer switch, it realizes unattended automatic startup once mains power fails.

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    Product Feature

    1.Turbocharged water-cooled diesel engine, low fuel consumption & durable performance

    2.Compact weatherproof canopy design, suitable for urban, residential and downtown areas

    3.Strict full-load running test before shipment, comply with ISO8528 & CE standards

    4.Protections: low oil pressure, high coolant temperature, overload, overspeed, over/under voltage

    5.Less maintenance, wide application for commercial backup, construction and remote areas

    Technical Specifications of 50kw Diesel Generator Set

    ItemStandard ParameterOptional Customization
    Prime Power50kW / 62.5kVA/
    Standby Power55kW / 68.75kVA/
    Frequency50Hz60Hz for North America market
    Rated Voltage400/230V Three Phase120/240V, 480V, Single Phase
    Power Factor0.8 Lagging/
    Rotation Speed1500rpm(50Hz) / 1800rpm(60Hz)/
    Cooling SystemWater Cooling/
    Starting System24V Electric Start/
    AlternatorBrushless, 100% Copper Winding/
    Control SystemSmartGen Digital ControllerDeepsea controller upgrade
    Structure TypeOpen TypeSilent Soundproof Canopy / Mobile Trailer
    Overload Capacity110% load for 1 hour every 12 hours/
    ComplianceISO8528, CE, ISO9001EPA emission certificate optional

    Why Choose Yiyue

    1.Professional genset manufacturer with abundant export experience worldwide

    2. Multiple engine brands optional: Weichai, Yuchai, Cummins etc.

    3.Support OEM customization: canopy color, logo, control configuration, remote monitoring

    4.Complete test reports and certification documents for project bidding

    5.Rigorous no-load, half-load and full-load inspection before delivery

    6.Professional technical team provides scheme consultation and installation guidance

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
    Applications
    FAQs

    Tags:

    50kW Diesel Generator Set 50kW Silent Diesel Generator Set Diesel Generator Set Water Cooled Diesel Generator Set
