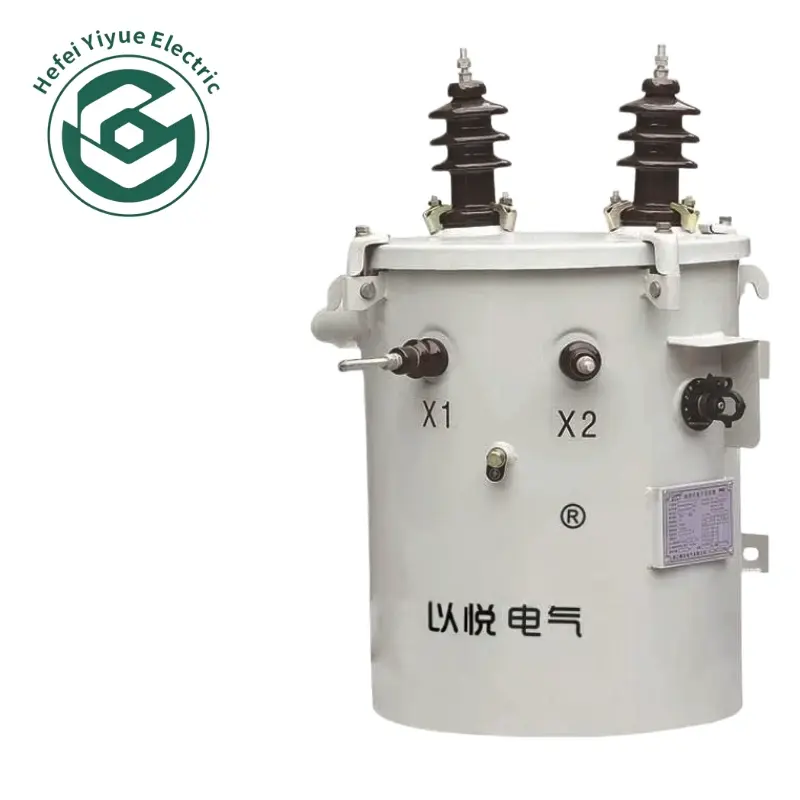

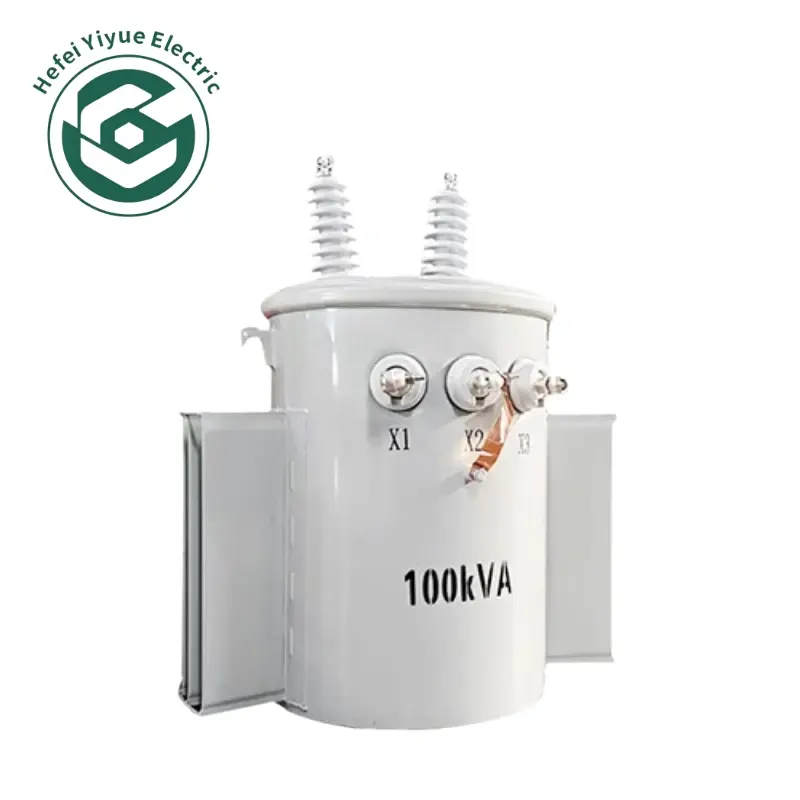

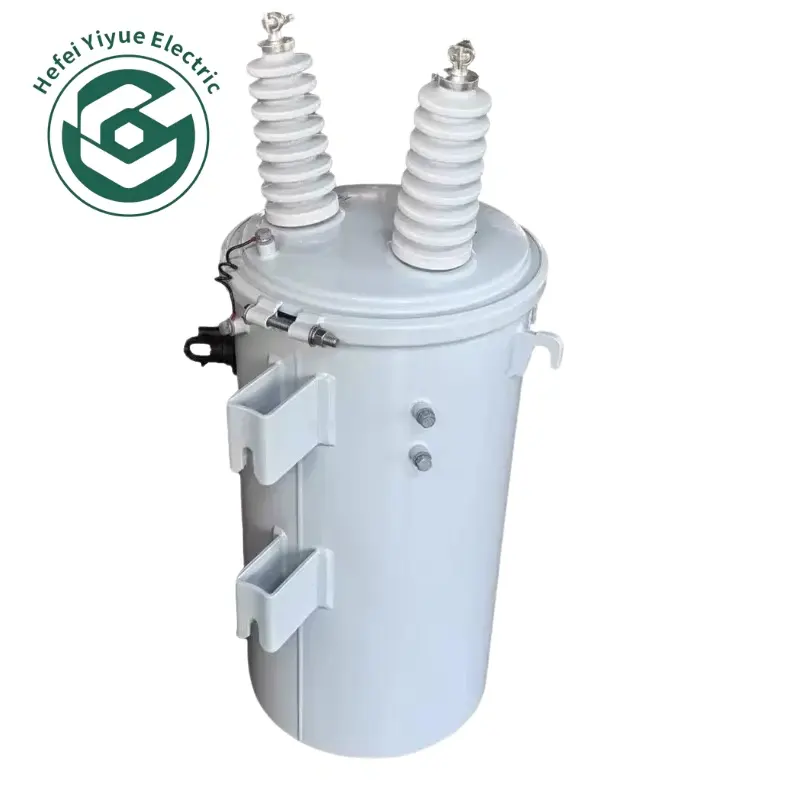

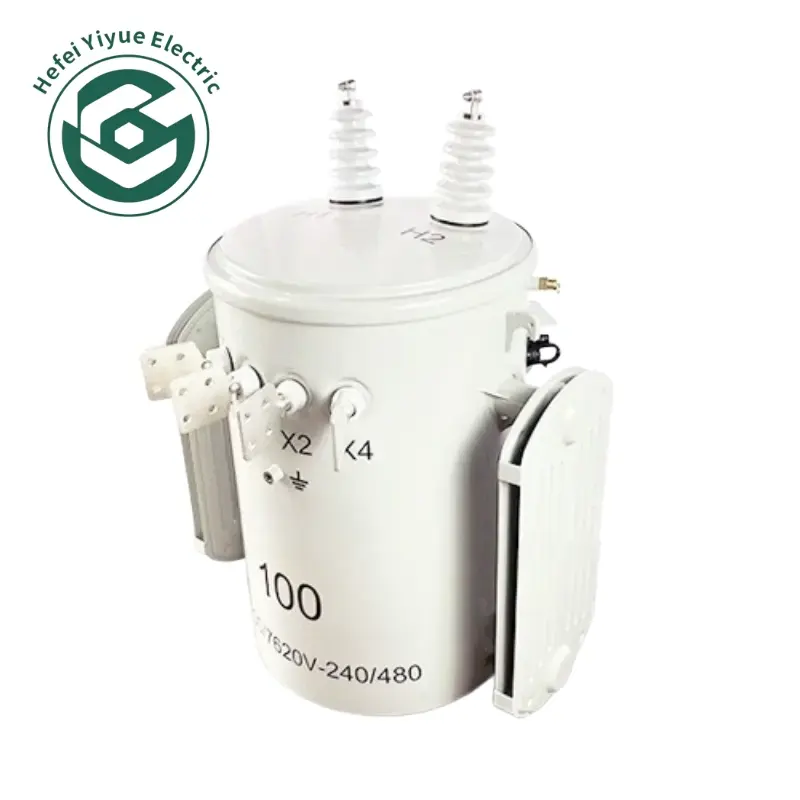

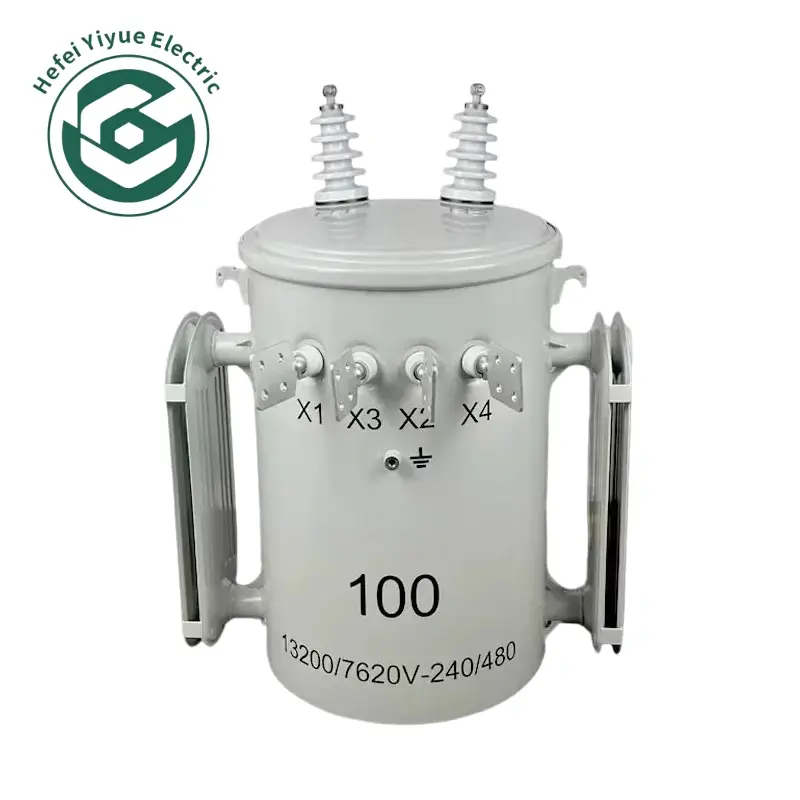

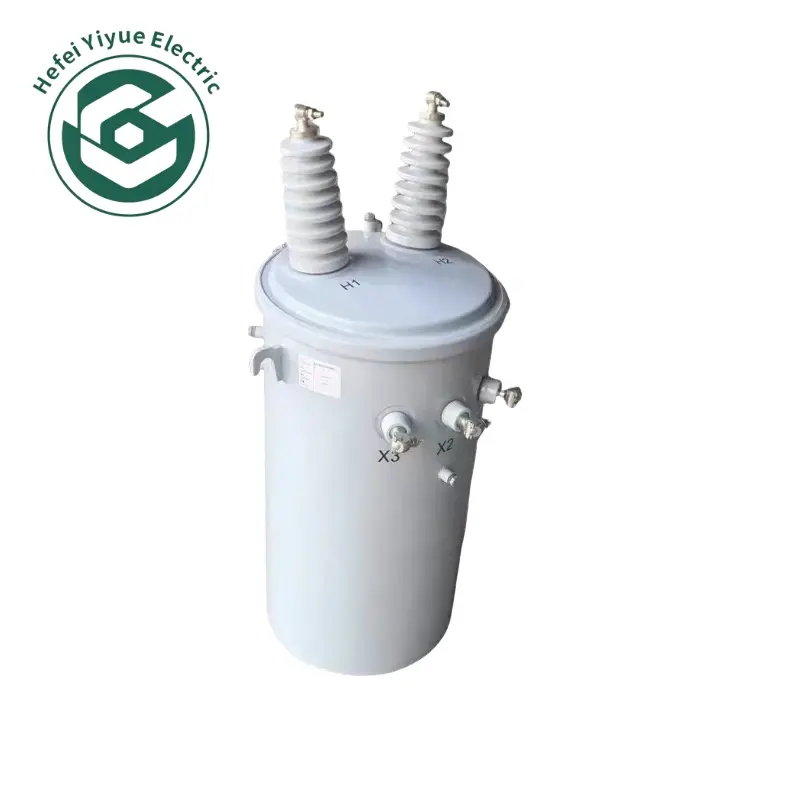

    Energy Efficient 100kVA Single Phase Oil Immersed Distribution Transformer

    This 100kVA single phase oil immersed distribution transformer is a standard pole-mounted / pad-mounted power conversion device engineered per ANSI C57.12 & IEC 60076 standards, widely used for overhead rural & suburban power grid, residential districts, small commercial buildings and agricultural power supply. Filled with mineral insulating oil for ONAN natural oil cooling, this 100 kVA single phase oil filled transformer converts high primary voltage (10kV/13.8kV/34.5kV) down to standard low secondary voltage 120/240V, 240/480V or customized ratings, delivering stable, low-loss single-phase power output for decentralized distribution systems.

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    Product Feature

    1.Rated 100kVA single phase design, ideal for rural areas, residential scattered power supply

    2.Support OEM logo, color, terminal layout and technical parameter adjustment

    3.Weather-resistant anti-corrosion paint, adapt to coastal, high temperature & humid environment

    4.Multiple voltage combinations customizable, support 50Hz / 60Hz, ANSI / IEC standard

    5.Hermetically sealed fully welded tank, prevent moisture ingress, extend service life

    6.High grain-oriented silicon steel core, low no-load loss, energy-saving operation

    Technical Specifications of 100kva Single Phase Oil Immersed Transformer

    ItemStandard ParameterCustom Optional
    Rated Capacity100 kVA/
    PhaseSingle Phase/
    Cooling MethodONAN Mineral Oil Immersed CoolingForced oil cooling
    Frequency60Hz (North America)50Hz
    Primary Voltage13800V, 12470V, 34500V2.4kV ~ 34.5kV
    Secondary Voltage120/240V Split Phase240/480V, 400V, 480V
    Tap Changer3 Taps ±2.5% Off-Circuit Tap ChangerOn-load tap changer
    Winding Material100% Copper WireAluminum winding
    Core MaterialGrain Oriented Silicon Steel SheetHigh permeability low-loss steel
    Mount TypePole Mounted Cylindrical TankPad Mounted Cabinet Type
    ProtectionStandard Pressure Relief ValveCSP integrated protection (fuse, lightning arrester)
    Standard ComplianceANSI C57.12, IEC 60076UL, CE, ISO9001, CSA
    Operating Temp Range-40℃ ~ +125℃Tropical heat resistant version
    Service Life≥20 Years/

    Why Choose Yiyue

    1.Specialized manufacturer of ANSI/IEC single phase distribution transformers, rich North America export experience

    2.Flexible customization: voltage ratio, frequency, tank size, terminal type & OEM marking

    3. Full performance inspection before shipment, complete test reports for utility tender

    4. Adopt premium raw materials, stable quality and low operation failure rat

    5. Products meet ANSI/IEEE C57.12 & IEC60076 international standards Professional engineering team support drawing confirmation and technical consultation

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
