    • 2000kVA Dyn11 Oil Immersed MV LV Power Transformer
    • 2000kVA Dyn11 Oil Immersed MV LV Power Transformer
    Oil Immersed Transformers

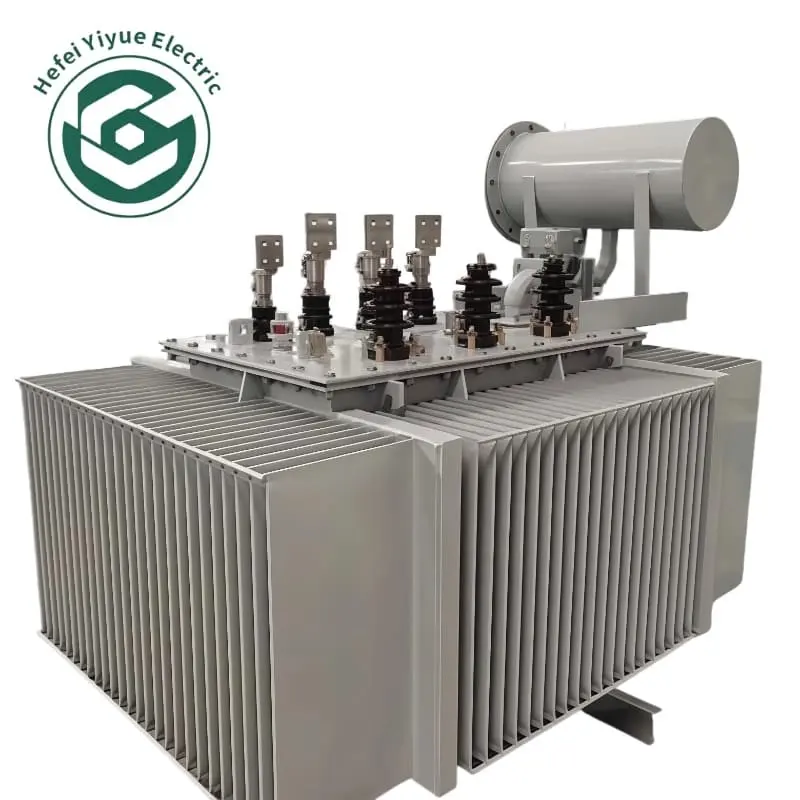

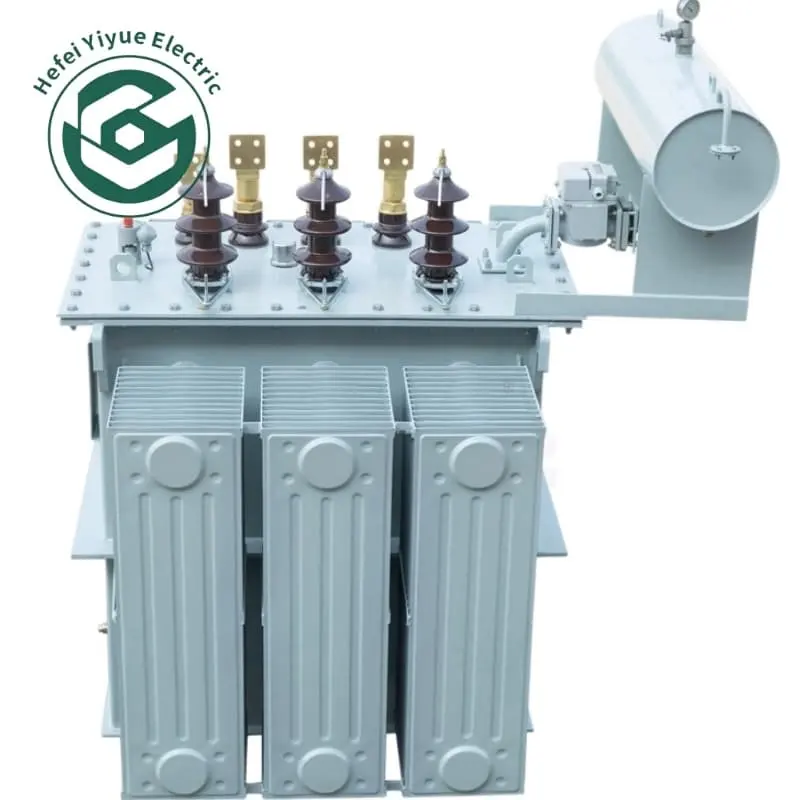

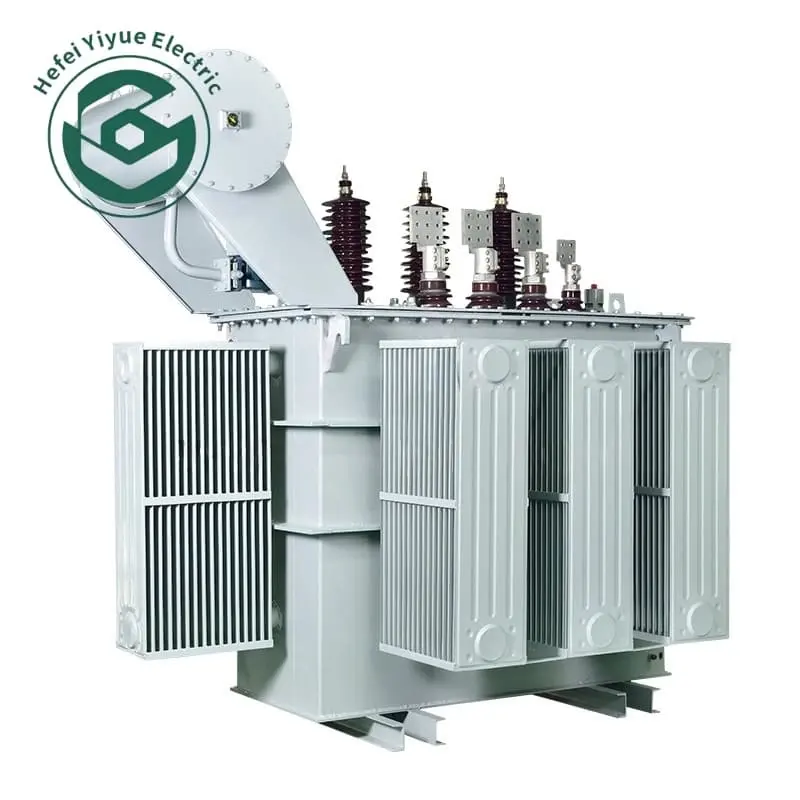

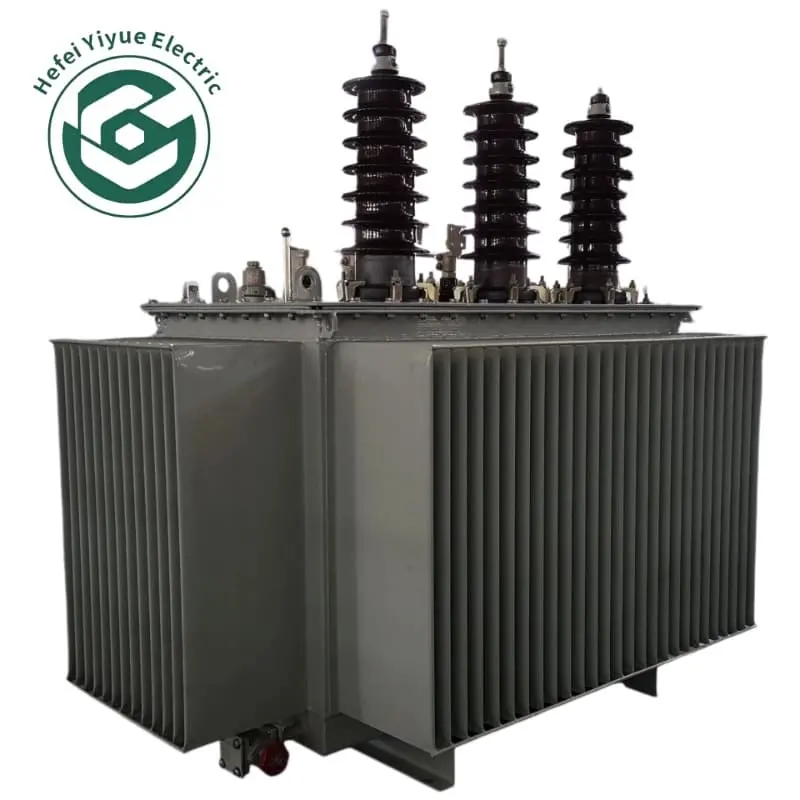

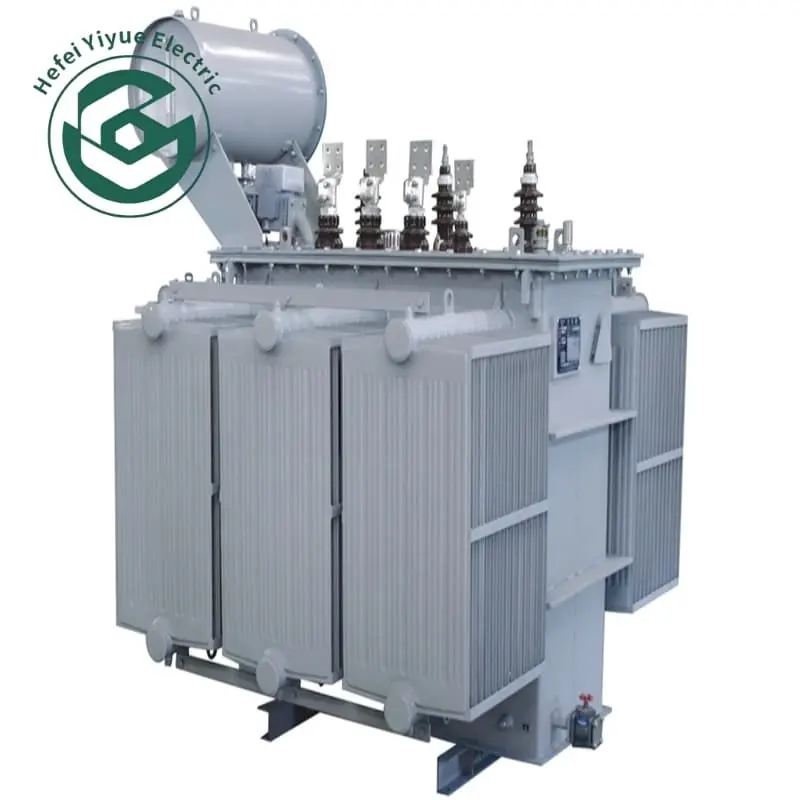

    2000kVA Dyn11 Oil Immersed MV LV Power Transformer

    Full-range customization & tailor-made services available.

    This 2000kVA Dyn11 oil-immersed MV/LV transformer converts 10/15kV to 400V for factories, grids and substations. Built with sealed tanks and corrugated radiators, it fixes high power loss, unstable voltage and overheating issues. It saves energy, withstands heavy loads and harsh climates with little maintenance, ideal for African and Middle Eastern power projects.

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    2000kVA Oil Immersed Transformer Feature

    1.Adopts full oxygen-free copper windings, featuring ultra-low resistance to cut load loss and save long-term electricity costs.

    2.Strong short-circuit resistance structure, effectively resisting impact current and avoiding winding deformation during grid faults.

    3.Equipped with high-grade CRGO silicon steel core, greatly reducing no-load loss and operating noise below 56dB.

    4.ONAN natural oil-air cooling system delivers stable heat dissipation without extra cooling fans, lowering operation noise and power consumption.

    5.Hermetically sealed tank filled with PCB-free mineral oil, blocking moisture and dust to extend service life over 30 years with minimal maintenance.

    6.Dyn11 vector group, ±5% off-load tap changer ensures steady secondary voltage under fluctuating grid loads.

    Technical Specifications of 2000kVA Dyn11 Oil Immersed MV LV Power Transformer

    ItemSpecification
    Product NameThree-phase Oil Immersed Power Transformer
    ModelS11/S13/S15/S20-2000kVA
    Rated Capacity2000kVA
    Input Voltage3V/6V/10V/15V/35V/69V/100V/110V/115V/120V/180V/220V/230V/240V/380V
    Output Voltage5V/9V/10V/12V/24V/36V/48V/110V/127V/200V/208V/220V/380V/400V/415V/440V/480V
    Frequency50Hz / 60Hz
    Cooling MethodONAN (Oil Natural Air Natural)
    Insulation ClassA/B/F/H Optional

    Why Choose Yiyue

    We are a direct manufacturer of oil-immersed transformers with competitive factory prices. Our transformers adopt high-permeability silicon steel sheets and pure copper windings, featuring low loss and strong short-circuit resistance. Hermetically sealed tanks avoid oil leakage and fit factories, photovoltaic stations and power grids. All products pass strict inspections and meet GB & CE standards, with custom specifications available. Fast delivery, complete safety protections and nationwide after-sales service with lifelong technical support.Complies strictly with IEC 60076 international standards, passes full type tests, applicable to global power grid projects.Integrated porcelain high-voltage bushing & complete accessory configuration, convenient on-site installation with minimal daily maintenance

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
    Applications
    FAQs

    • Is the S9 transformer suitable for new projects?

      The S9 series is mainly recommended for replacement projects or markets with moderate energy-efficiency requirements.

    • Can the transformer be customized?

      Yes. We support customization for voltage, capacity, dimensions, cooling methods, and special environmental adaptations. Our engineers will work with you to finalize the specs based on your project needs.

    • What standards do you follow?

      We design and test to IEC 60076 and GB/T standards. For specific markets, we can also produce to ANSI, BS, DIN, or AS standards. Third-party inspections are welcome.

    • What about the production?

      Production is done in our 8,000㎡ Hefei plant. Standard lead time is 20–35 working days, with expedited options available. Factory acceptance testing is welcome before shipment.
