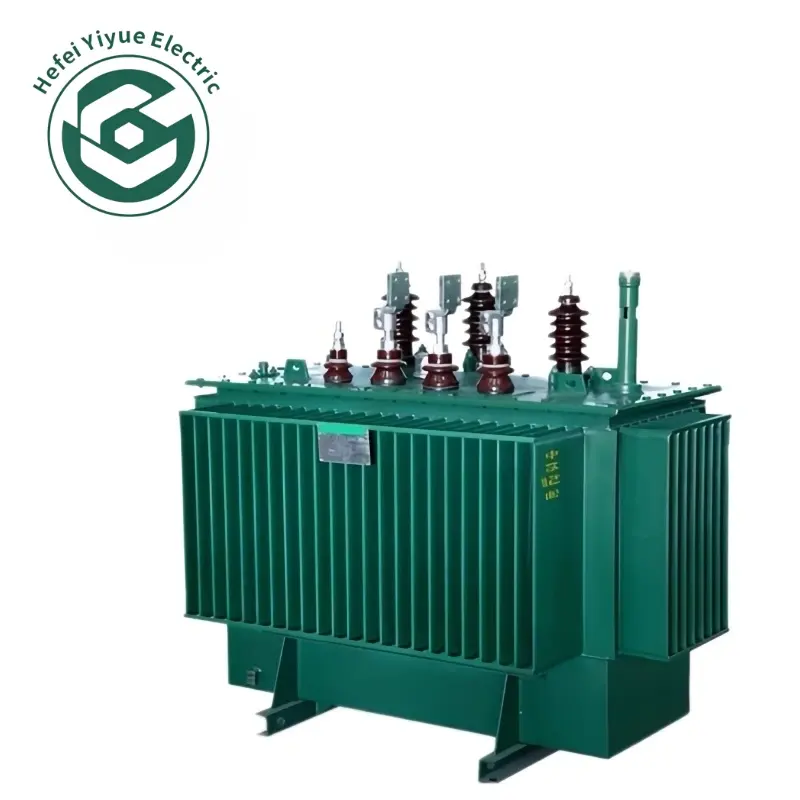

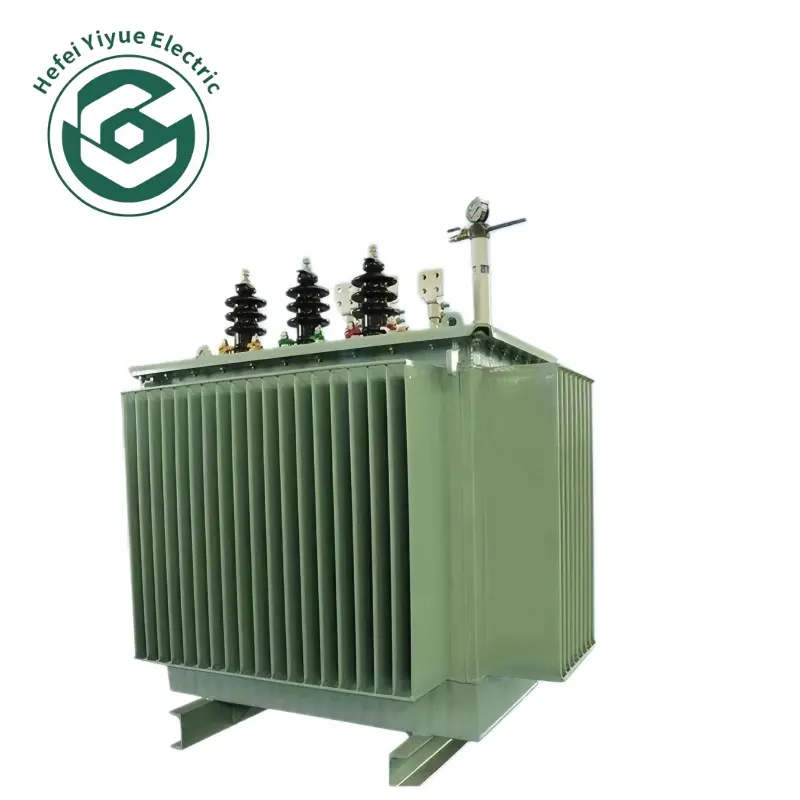

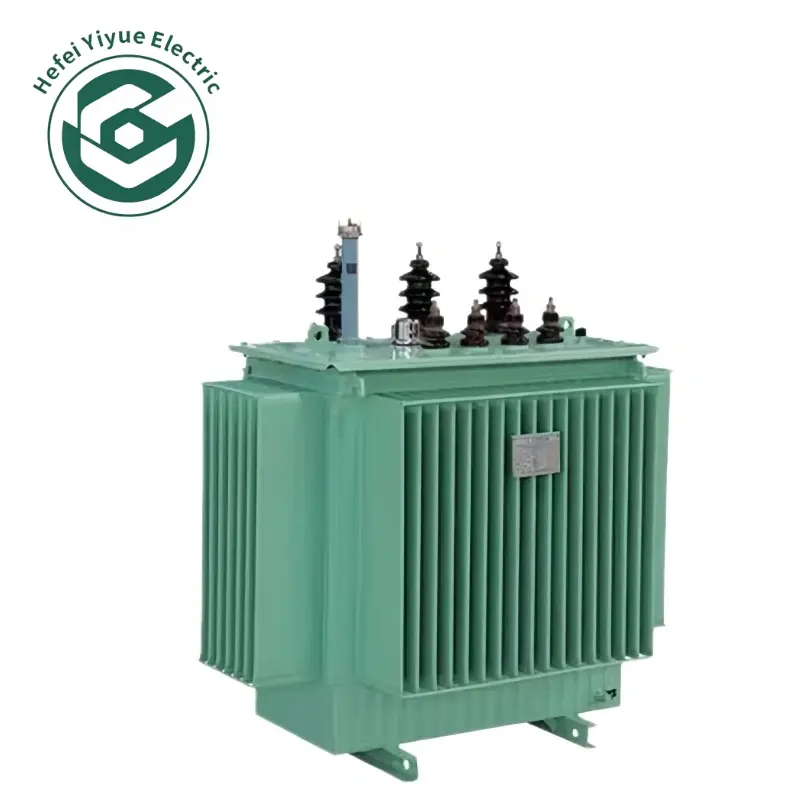

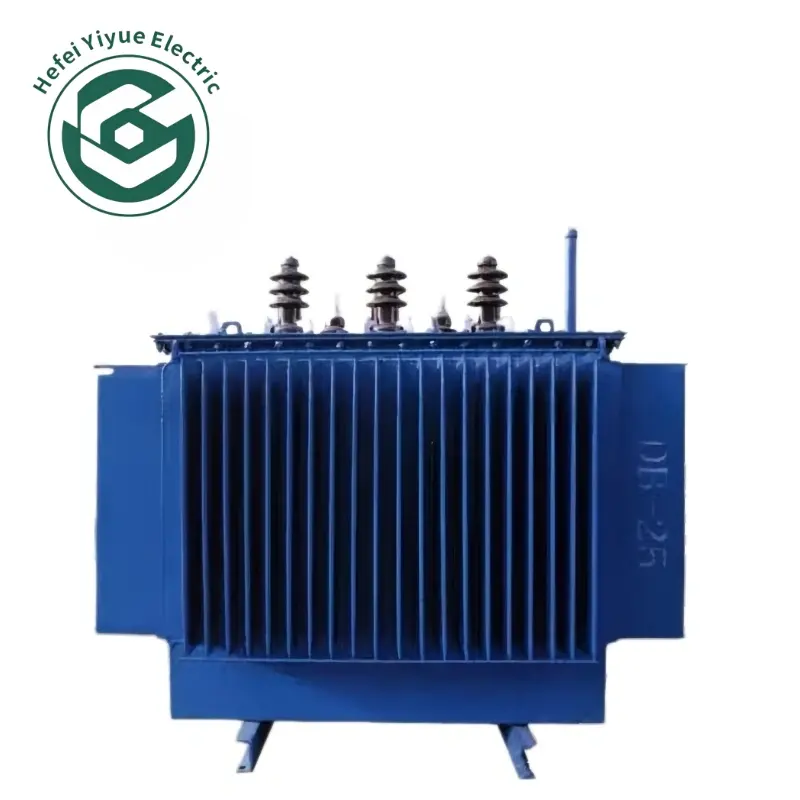

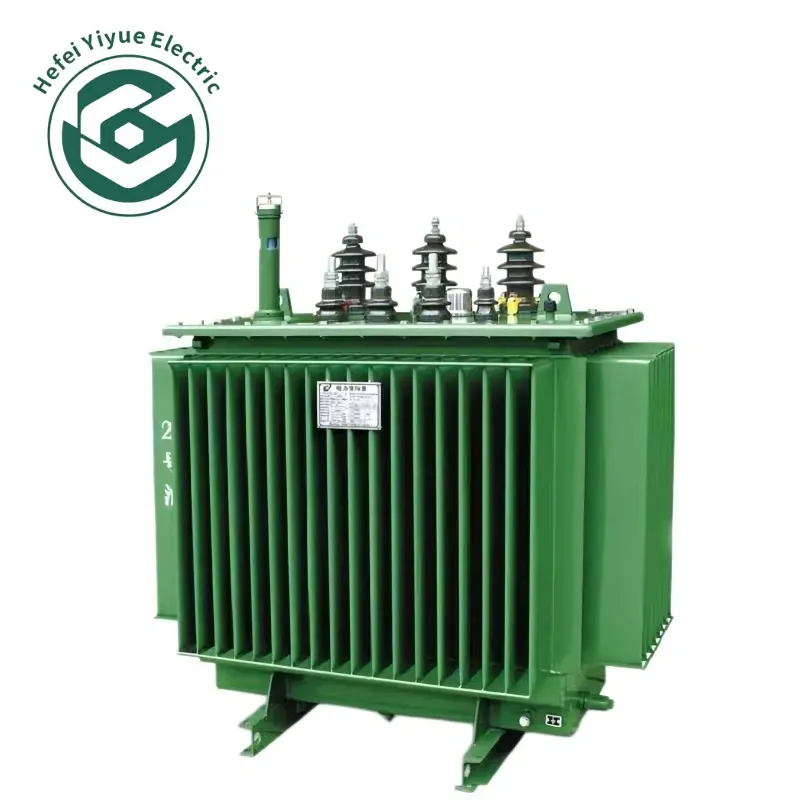

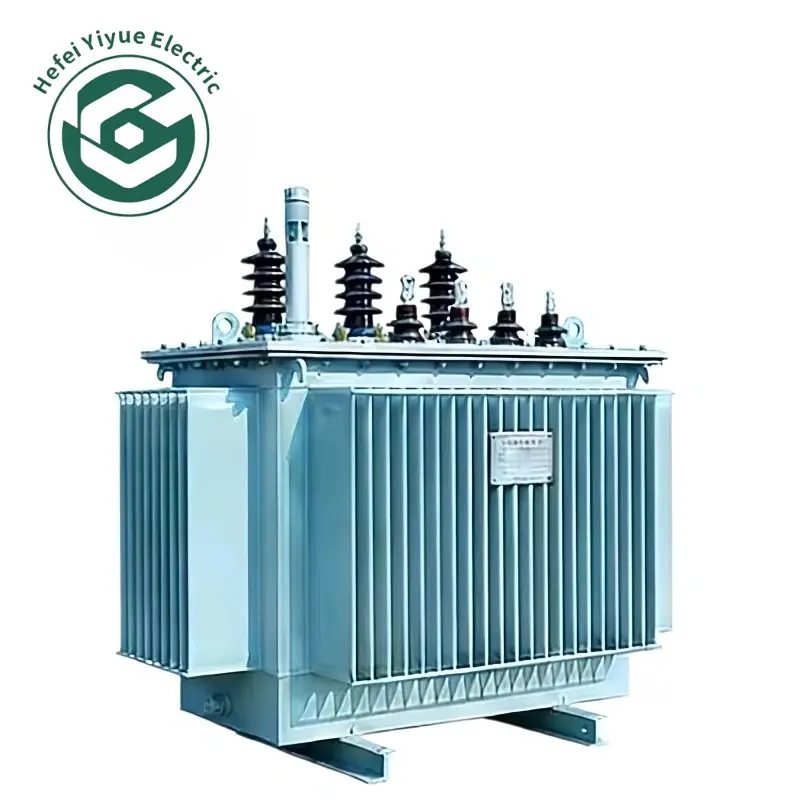

    High Efficiency 50kVA Oil Immersed Transformer

    Full range of products can be customized

    The 50kVA oil-immersed transformer is widely used in daily life. It supplies power for rural villages, small shops, farmhouses, community charging piles and courier stations. Scenic spots, temporary construction sites and breeding workshops also adopt this model. Compact and easy to install, it converts 10kV to 0.4kV stable voltage for lighting, household appliances and small equipment, making it a popular power transformation device for scattered small loads in urban and rural areas.



    Operation & Common Notes：

    Check appearance, oil level and terminals before installation, fix the transformer horizontally and connect ground reliably. Wire HV and LV cables as marked, run it with no load for 30 mins; put on load if no abnormal noise or oil leakage. Only check oil level and leakage regularly. Do not overload long-term; adjust tap changer after power cut under unstable voltage. Common faults include oil leakage, hot terminals and strange noise. Tighten welds for leakage, fasten terminals for overheating, and cut power to inspect core for noise. Keep waterproof and dustproof outdoors.

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    Product Feature

    The core is laminated with high-permeability silicon steel sheets to reduce no-load loss and save energy. Pure copper windings feature high temperature resistance and strong short-circuit withstand capacity. Equipped with a fully sealed corrugated tank, it isolates air to slow oil deterioration, realizing maintenance-free outdoor use with a service life over 20 years.

    Designed with ONAN cooling system, it runs quietly. The anti-corrosion tank is moisture-proof, dust-proof and lightning-proof. An off-circuit tap changer supports ±2×2.5% voltage regulation to adapt to grid fluctuations. Compact and easy to install, it is an economical and reliable power transformation device for small power distribution.

    Technical Specifications of 50KVA Three Phase Oil Immersed Transformer

    ParameterSpecification
    Rated Capacity50kVA
    Primary & Secondary Voltage10kV / 0.4kV
    Connection GroupDyn11
    Short-circuit Impedance4%
    Cooling MethodONAN

    Why Choose Yiyue
    We are a professional manufacturer of oil immersed transformers with complete qualifications and strict factory tests. Adopting high-quality cores and windings, our transformers feature low loss, good heat dissipation and stable operation. Custom specifications are available to suit different working conditions. We provide fast delivery, reasonable prices, formal warranty, technical guidance and after-sales service, ensuring long-term safe power supply and cost-effective purchases.

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
    Applications
    FAQs

    • Is the S9 transformer suitable for new projects?

      The S9 series is mainly recommended for replacement projects or markets with moderate energy-efficiency requirements.

    • Can the transformer be customized?

      Yes. We support customization for voltage, capacity, dimensions, cooling methods, and special environmental adaptations. Our engineers will work with you to finalize the specs based on your project needs.

    • What standards do you follow?

      We design and test to IEC 60076 and GB/T standards. For specific markets, we can also produce to ANSI, BS, DIN, or AS standards. Third-party inspections are welcome.

    • What about the production?

      Production is done in our 8,000㎡ Hefei plant. Standard lead time is 20–35 working days, with expedited options available. Factory acceptance testing is welcome before shipment.
