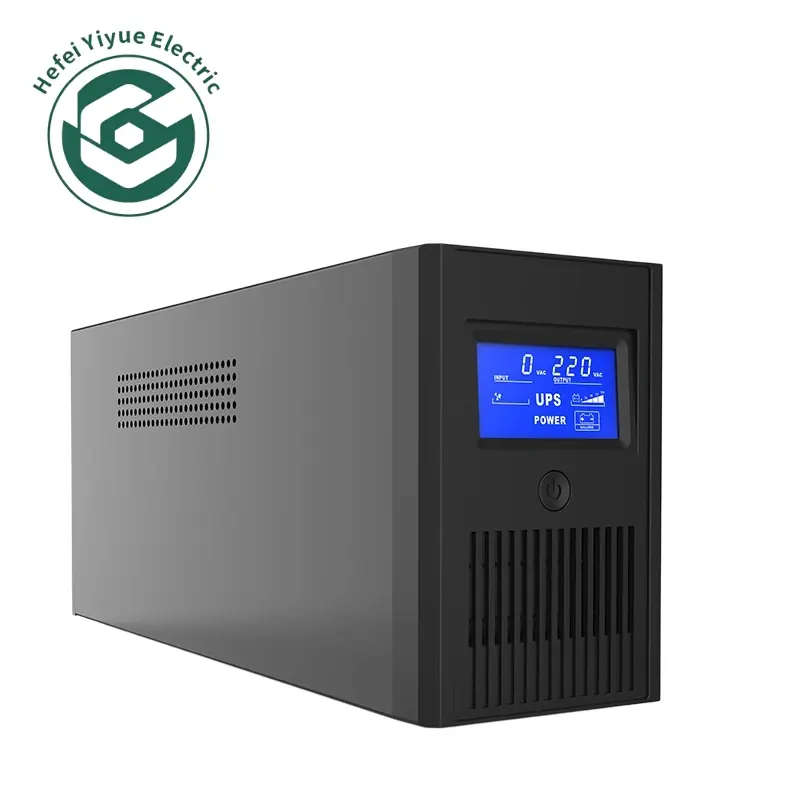

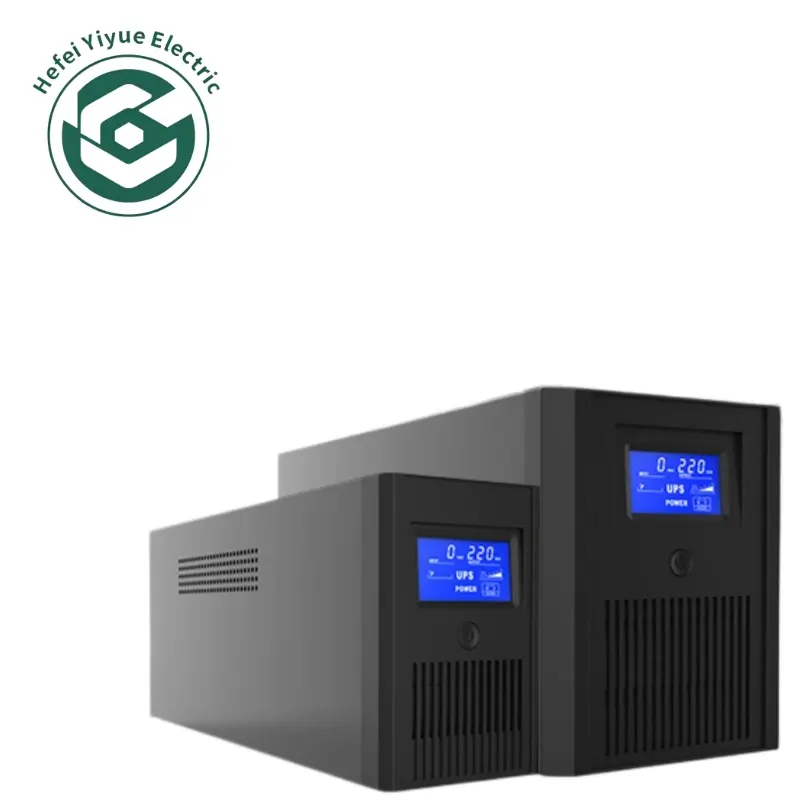

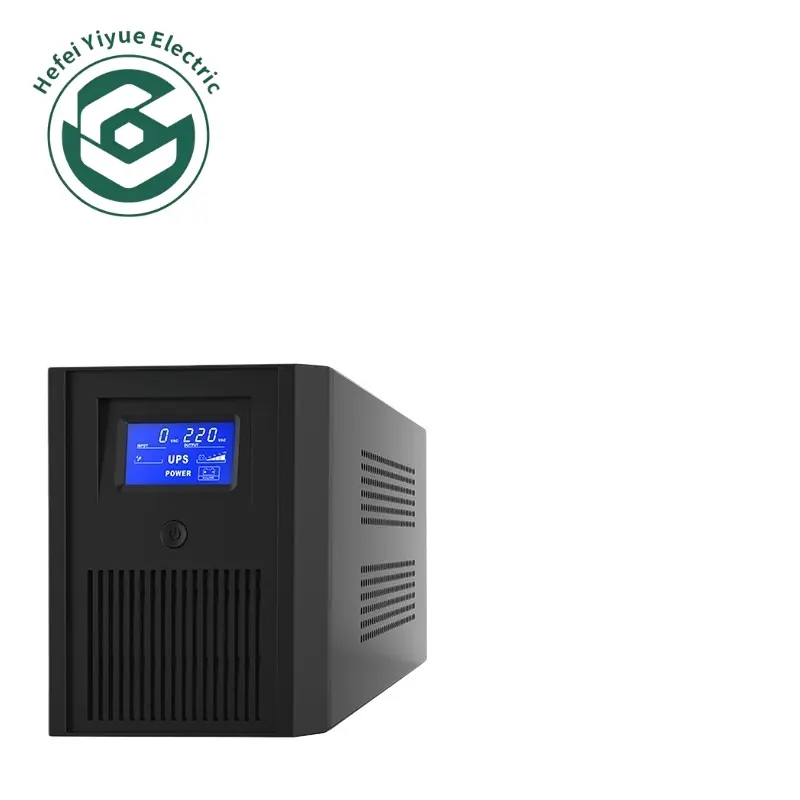

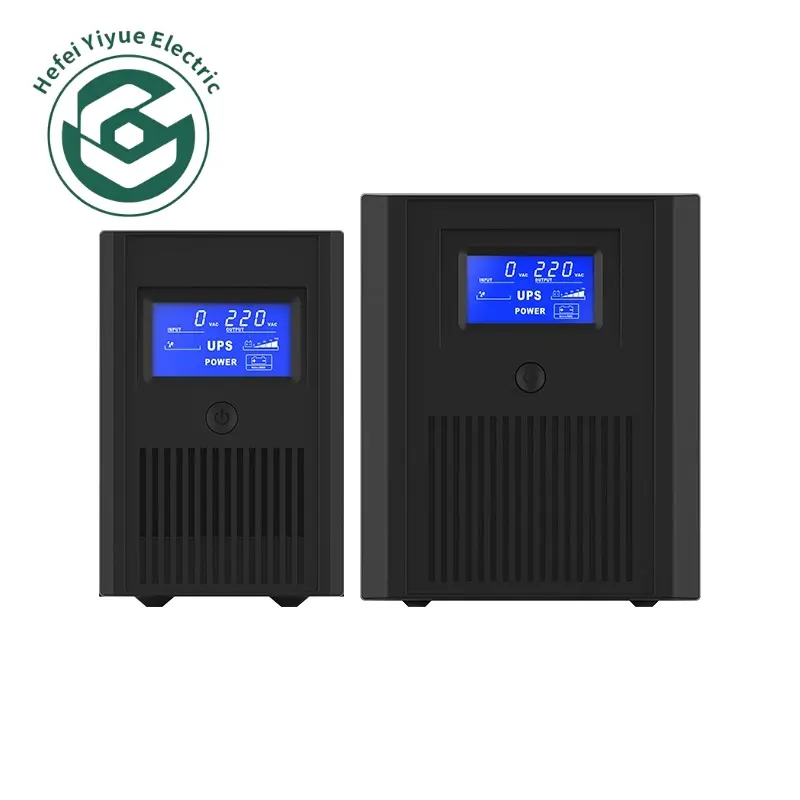

High Frequency Online UPS 1500VA 1.5kVA Single Phase Home Office Uninterruptible Power Supply
Support OEM & ODM Customization
Our 1.5kVA Online UPS adopts true online double conversion technology, delivering continuous, clean pure sine wave power to your sensitive electronics. Different from line-interactive UPS, it converts AC to DC and inverses back to AC all the time, realizing 0ms transfer time once power failure occurs.
Designed for household and small home office usage, this 1500VA uninterruptible power supply effectively solves common grid issues including power outage, brownout, overvoltage, undervoltage, surge and electromagnetic interference. It offers stable voltage regulation to prevent hardware burnout, data corruption and unexpected downtime.
Equipped with intuitive LCD display, users can real-time check input voltage, output load, battery level, working status and fault alarms. Built-in maintenance-free lead-acid batteries support instant emergency power supply. Optional external battery pack interface is available for extending backup runtime according to demands.
Ideal power protection solution for desktop computers, NAS storage, network routers, cameras, POS equipment and small audio devices. Reliable, compact and quiet for long-term daily operation.
✅ True Online Double Conversion, 0ms Switchover No power interruption during mains-battery mode conversion, perfect for precision electronic equipment.
✅ Pure Sine Wave Output High compatibility with servers, NAS and inductive loads; avoids device abnormal shutdown and noise.
✅ Wide Input Voltage Range Strong adaptability to unstable local power grid, reduces frequent battery activation.
✅ Automatic Voltage Regulation (AVR) Constant stable output voltage under abnormal mains condition.
✅ ECO Energy Saving Mode Lower power consumption during light load to save electricity cost.
✅ Compact Tower Structure, Low Noise Fan Suitable for home study, office room and small monitoring room installation.
Technical Specifications of 1500VA 1.5kVA Single Phase Home Office Online UPS
Item
Parameter
Model
1.5KVA Online UPS / 1500VA High Frequency UPS
Rated Capacity
1500VA / 1200W (PF=0.8)
Topology
True Online Double Conversion
Waveform
Pure Sine Wave Output
Input Voltage
160~275VAC (Wide Input Range)
Input Frequency
45Hz ~ 65Hz, Auto Sensing
Output Voltage
220VAC / 230VAC Optional
Output Frequency
50Hz / 60Hz Auto Tracking
Transfer Time
0ms (Mains ↔ Battery Mode)
Battery Type
Built-in Maintenance-free Lead Acid Battery
Battery Voltage
DC 48V
Charger
Intelligent Float Charging
Display
LCD Digital Display
Protection
Overload, Overvoltage, Undervoltage, Short Circuit, Overheat, Overcharge, Discharge Protection
Cooling
Intelligent Speed Control Fan
Operation Mode
Normal Mode / Battery Mode / ECO Energy Saving Mode
Communication Port
Optional RS232 / USB Port (Monitoring Software Support)
Operating Temperature
0℃ ~ 40℃
Storage Temperature
-20℃ ~ 55℃
Relative Humidity
20% ~ 90% Non-Condensing
Altitude
≤1500m (Derate above 1500m)
Noise Level
≤50dB (1 Meter Distance)
Dimension (Tower)
Customized (Fill actual size LWH mm)
Net Weight
Customized (Fill actual weight KGS)
Standard
CE, FCC Compliant
Why Choose Yiyue
All electrical products pass strict factory tests in line with IEC, CE and ANSI standards, with outstanding anti-corrosion and sealing performance for outdoor application.
Hefei Yiyue Electrical Equipment Trading Co., Ltd focuses deeply on the core sectors of the electrical equipment industry.
Based in Hefei, the company serves the domestic market while expanding its reach nationwide and globally.
Driven by the mission to “connect the world’s advanced electrical technologies and build an intelligent, efficient energy ecosystem”.
It strives to become a top-tier domestic and internationally renowned provider of electrical equipment trading and comprehensive services.
The company owns an independent industrial park covering 8,000 square meters.
Main products: generator sets, transformers, box-type substations, high and low voltage switchgear, power distribution cabinets, gas-insulated ring main units (RMUs), vacuum circuit breakers, power system accessories, power cables.
Professional UPS manufacturer with strict quality testing before shipment Stable performance, full load aging test to guarantee rated capacity
