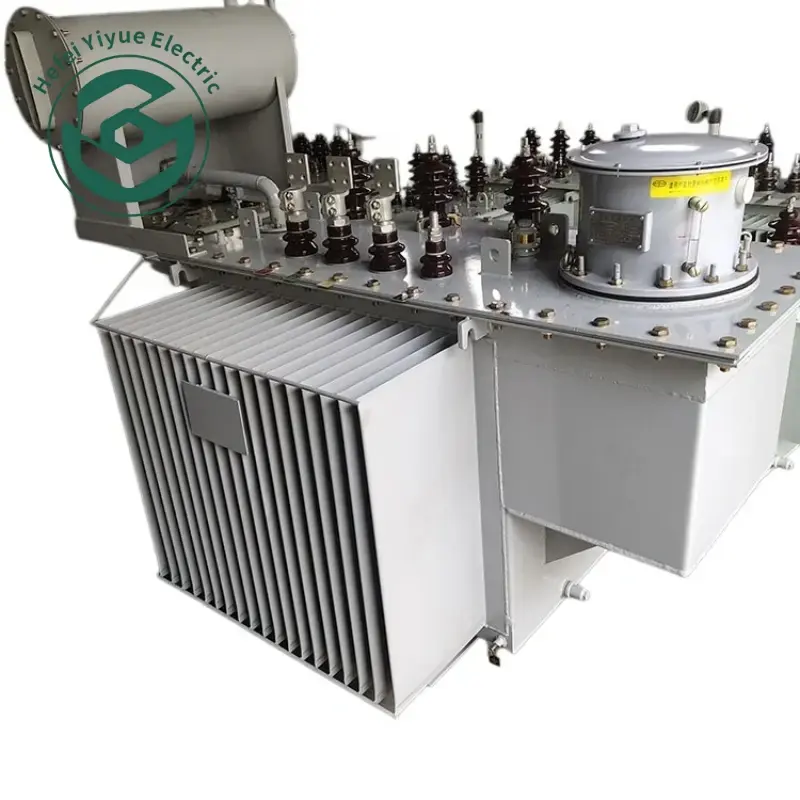

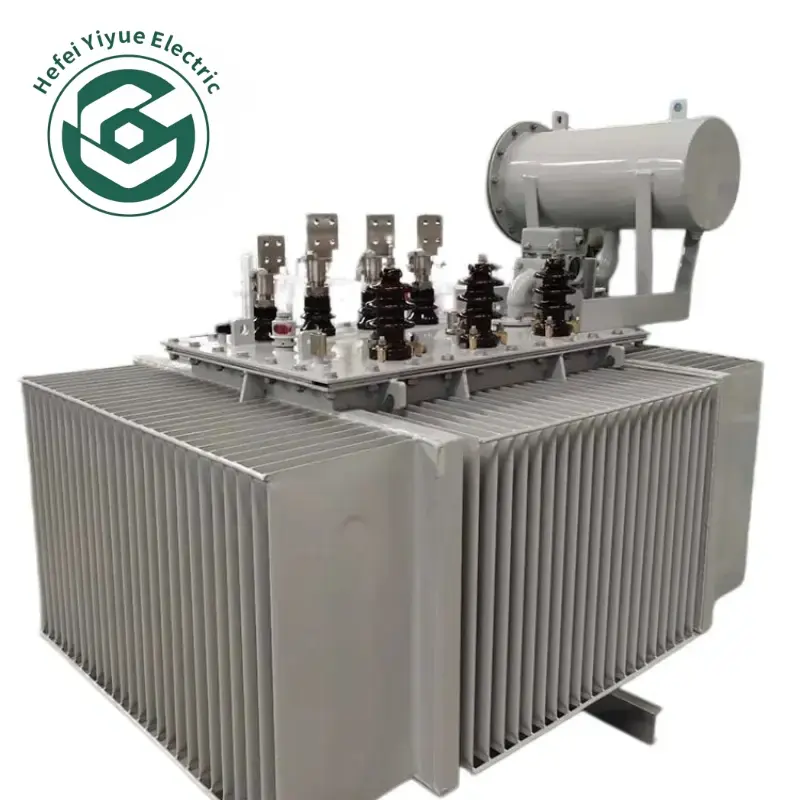

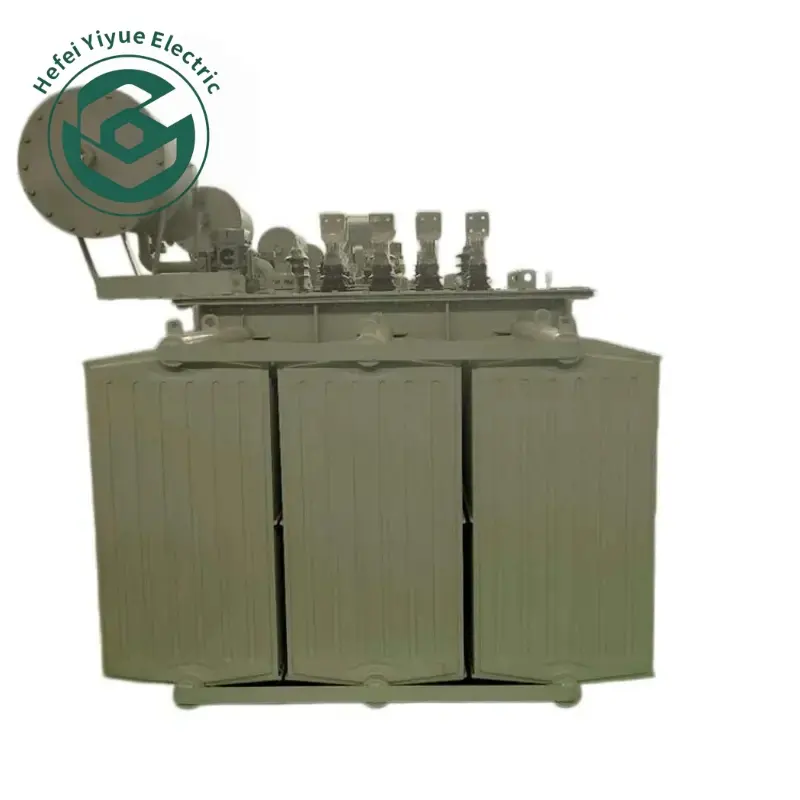

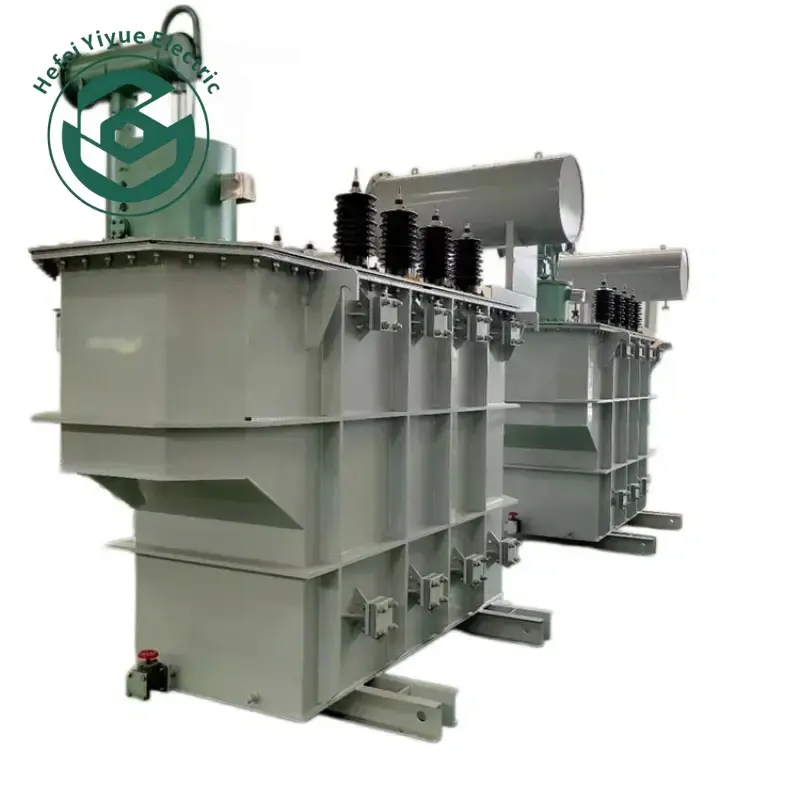

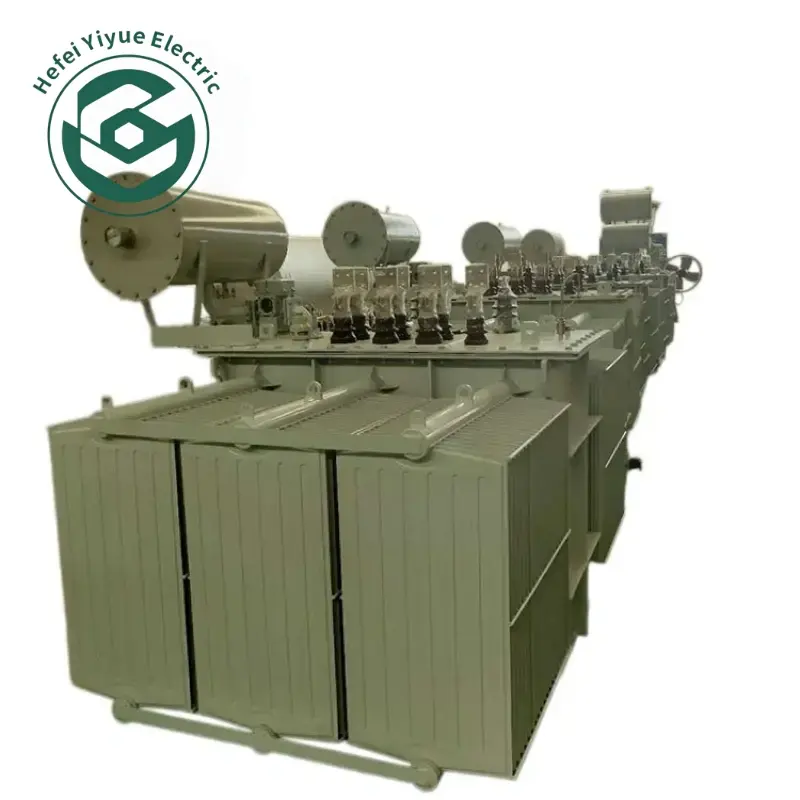

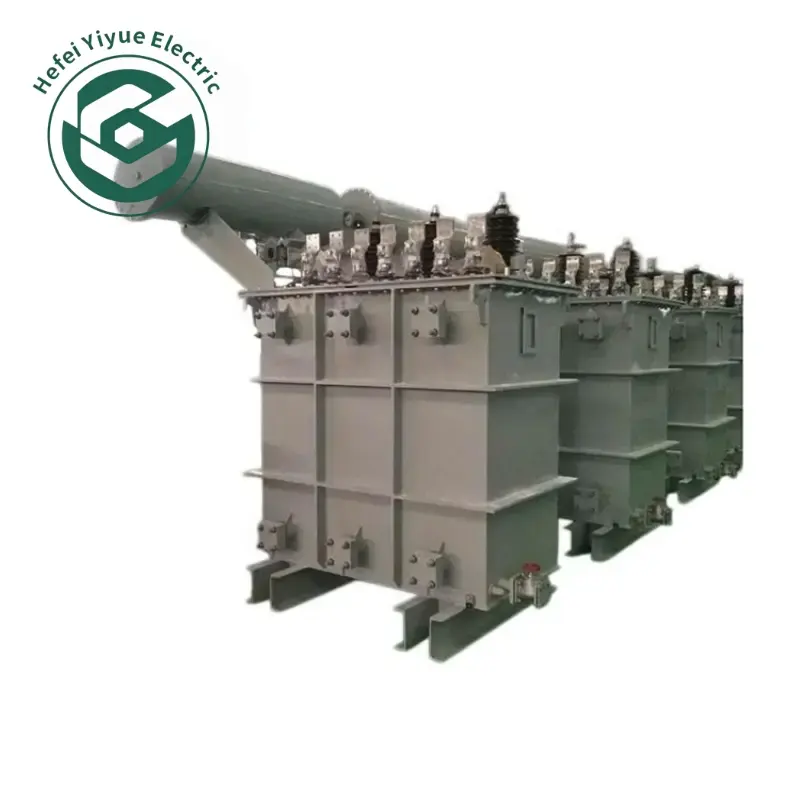

    2500kVA Three Phase Oil Immersed Transformer

    2500kVA oil-immersed three-phase power transformer is a three-phase oil-natural cooling main distribution transformer with a rated capacity of 2500 kVA. Mineral oil is adopted as insulation and cooling medium. The iron core is made of high-permeability cold-rolled silicon steel sheets, and the windings are wound with oxygen-free copper wires.

    The equipment features low operating loss and stable insulation performance. Compatible with the common voltage class of 10kV/0.4kV, it boasts strong overload tolerance and short-circuit withstand capability. Widely used in large-capacity power supply scenarios such as industrial plants, commercial complexes, municipal power distribution facilities and substations, it can operate continuously and stably for a long term with easy maintenance, suitable for installation in both indoor and outdoor power distribution rooms.

    Rated Capacity: 2500 kVA, three-phase AC power transformation

    Cooling Mode: ONAN (Oil Natural Air Natural)

    Conductive Material: All-copper windings with low loss and strong current-carrying capacity

    Insulating Medium: Special cooling and insulating transformer oil

    Protection Configuration: Gas relay protection, oil temperature monitoring, pressure relief, oil level indicator

    Application Scenarios: Centralized power distribution for large-capacity industrial, municipal and commercial projects

    • Clear shipment tracking

    • Rigorous quality inspection

    • Has good after-sales service

    Inquire Now
    Whatsapp

    Share:

    Detailed Description

    2500kVA Oil Immersed Transformer Feature

    1.Adopts high-grade silicon steel core and copper windings, achieving ultra-low no-load and load losses for high energy efficiency.

    2.Oil-immersed cooling structure ensures excellent heat dissipation, stable temperature operation and reliable long-term performance.

    3.Robust structural design and advanced insulation system provide strong short-circuit withstand capability and high safety.

    4.Optimized manufacturing process greatly reduces operating noise, suitable for urban and industrial substations.

    5.Fully sealed and anti-corrosion structure adapts to diverse outdoor and indoor environments with a long service life.

    6.Compliant with international standards and supports voltage tap adjustment and customized parameters for different power grid projects.

    Technical Specifications of 2500kva oil-immersed three-phase transformer

    Rated Capacity2500kva
    input voltage100V, 110V, 115V, 120V, 180V, 230V, 240V, 380V，220V, 3 V, 6 V, 10 V, 15V, 35 V, 69 V，110 V, 115 V
    output voltage5V, 9V, 12V, 24V, 36V, 48V, 110 V, 127V, 200V，208V, 220 V, 380 V，400 V, 415 V, 440 V, 480 V, 10 V
    Frequency50Hz / 60Hz
    Cooling MethodONAN (Oil Natural Air Natural)
    Product nameThree-phase Oil Immersed Power Transformer
    modelS11/S13/S15/S20-2500kVA
    Insulation ClassClass A

    Why Choose Yiyue

    We are a direct manufacturer of oil-immersed transformers with competitive factory prices. Our transformers adopt high-permeability silicon steel sheets and pure copper windings, featuring low loss and strong short-circuit resistance. Hermetically sealed tanks avoid oil leakage and fit factories, photovoltaic stations and power grids. All products pass strict inspections and meet GB & CE standards, with custom specifications available. Fast delivery, complete safety protections and nationwide after-sales service with lifelong technical support.

    Packaging And Transportation

    Yiyue Electric implements standardized packaging and shipping management to protect transformers, switchgears, cables and electrical components throughout the entire delivery process, ensuring products arrive in intact condition.

    Customized Packaging Solutions

    • Small-sized products: Moisture-proof bubble wrap + reinforced cartons with anti-collision corner protectors
    • Medium & large equipment: Stretch film sealing for full moisture resistance, with foam padding on vulnerable parts for shock absorption
    • Heavy machinery & export shipments: ISPM15-compliant fumigated wooden cases secured with steel belts, suitable for long-distance international transit

    All packages are marked with clear shipping marks and handling warnings for standard operation.

    Production Lead Time

    • Standard in-stock items: 5–7 working days upon payment confirmation
    • Customized non-standard products: 7–15 working days after design confirmation & deposit
    • Large orders with special requirements: Lead time subject to separate confirmation
    Shipping MethodRegionEstimated Transit TimeRemarks
    Sea FreightSoutheast Asia15–25 working daysPort to port, FCL & LCL available
    Middle East15–25 working daysPort to port, FCL & LCL available
    North America20–30 working daysPort to port, FCL & LCL available
    Europe25–35 working daysPort to port, FCL & LCL available
    Oceania20–30 working daysPort to port, FCL & LCL available
    Africa30–45 working daysPort to port, FCL & LCL available
    Air FreightSoutheast Asia5–7 working daysAirport to airport, for urgent orders
    Middle East5–7 working daysAirport to airport, for urgent orders
    North America10–15 working daysAirport to airport, for urgent orders
    Europe7–15 working daysAirport to airport, for urgent orders
    Africa4–6 working daysAirport to airport, for urgent orders
    Air Freight (Express)Worldwide Major Countries3–7 working daysDoor-to-door, suitable for small spare parts
    Applications
    FAQs

    • Is the S9 transformer suitable for new projects?

      The S9 series is mainly recommended for replacement projects or markets with moderate energy-efficiency requirements.

    • Can the transformer be customized?

      Yes. We support customization for voltage, capacity, dimensions, cooling methods, and special environmental adaptations. Our engineers will work with you to finalize the specs based on your project needs.

    • What standards do you follow?

      We design and test to IEC 60076 and GB/T standards. For specific markets, we can also produce to ANSI, BS, DIN, or AS standards. Third-party inspections are welcome.

    • What about the production?

      Production is done in our 8,000㎡ Hefei plant. Standard lead time is 20–35 working days, with expedited options available. Factory acceptance testing is welcome before shipment.
